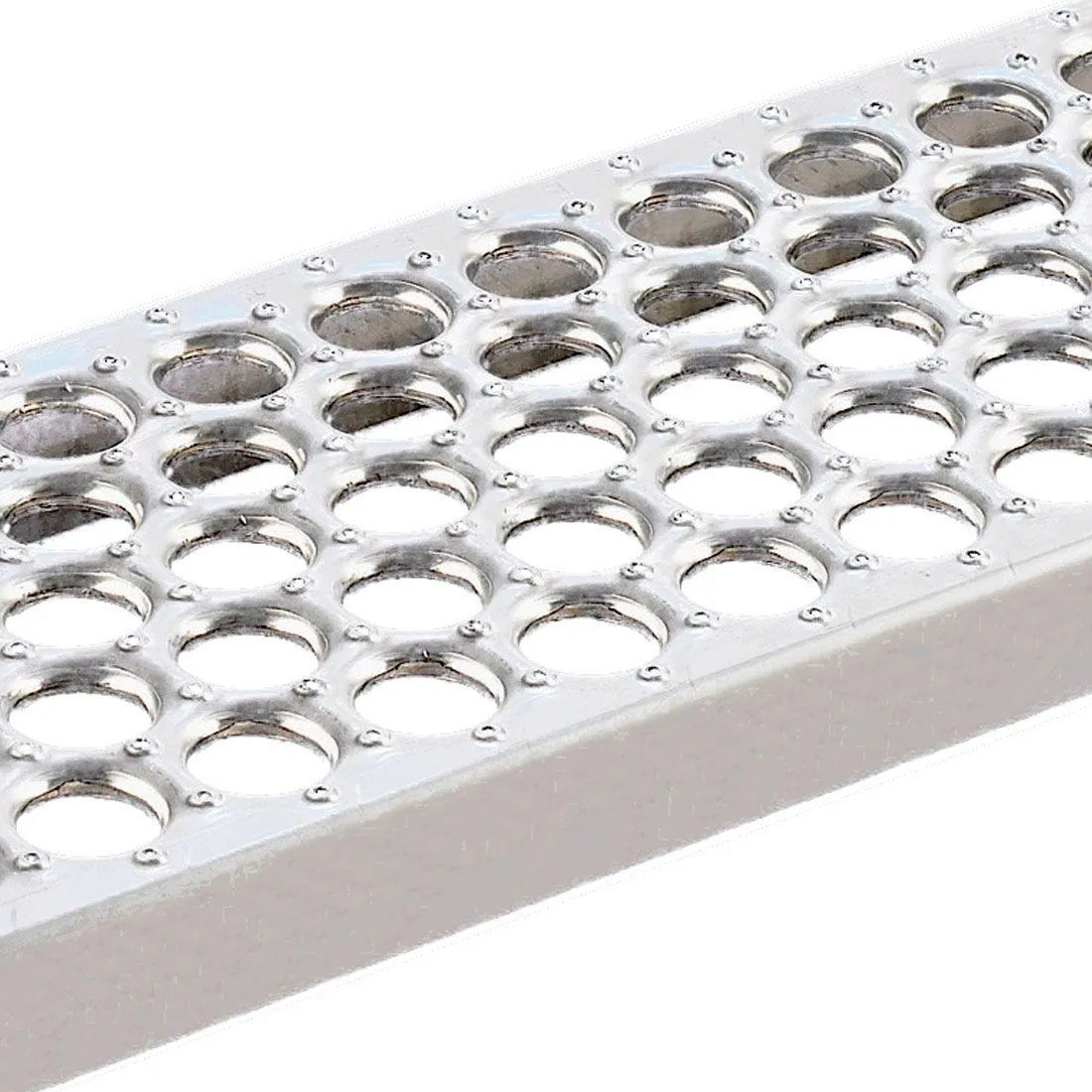

Perf-O Grip Punched Sample Cutout
Designed for excellent traction combined with walking comfort. This sample allows you to inspect the precise round-hole pattern and debossed buttons manufactured by our automated CNC punching lines.
Perf-O Grip Grating: Design, Manufacturing and Applications
Perf-O Grip is a perforated metal safety grating that combines anti-slip performance with superior walking comfort compared to serrated alternatives. The product features precisely punched round holes with raised, debossed buttons surrounding each opening — creating a textured surface that provides reliable traction while remaining comfortable for workers who stand or walk on it for extended periods.
Manufacturing uses CNC-controlled punching lines that simultaneously perforate and form the raised buttons in a single progressive operation. The process starts with Q235B carbon steel coil (1.5mm to 4.0mm thickness), fed through servo-driven punch presses operating at consistent tonnage to ensure uniform button height (typically 2-3mm above the sheet surface) and clean hole edges without burrs. Panel dimensions are cut to specification after punching, with standard widths up to 1250mm and lengths up to 6000mm.
The round-hole pattern provides approximately 30-40% open area depending on hole pitch, enabling effective drainage of water, oil, and debris while maintaining structural integrity for pedestrian and light vehicle loads. This makes Perf-O Grip particularly suitable for food processing facilities (where hygiene and drainage are critical), pharmaceutical plants (cleanroom-adjacent areas requiring washdown capability), commercial buildings (architectural applications where aesthetics matter), and transit platforms (where passenger comfort and ADA compliance are required).
Surface treatment options include hot-dip galvanizing (ISO 1461, minimum 505 g/m² for 2.5mm material), electro-galvanizing for indoor applications, powder coating in RAL colors for architectural projects, and stainless steel (304/316L) for food-grade or highly corrosive environments. The sample provided allows buyers to verify button height consistency, hole edge quality, surface coating uniformity, and overall flatness before committing to production quantities.
Perf-O Grip vs Grip Strut
| Feature | Perf-O Grip | Grip Strut |
|---|---|---|
| Anti-Slip | Raised buttons | Serrations |
| Comfort | High | Moderate |
| Drainage | 40% open | 15% open |
| Best For | Food plants, clean rooms | Heavy traffic |
Industry Applications
Food Processing
Washdown areas, FDA compliant materials.
Mezzanines
Employee comfort, reduced foot fatigue.
Chemical Plants
Tank platforms, excellent drainage.
Marine Decks
Barefoot safe, no sharp edges.
Frequently Asked Questions
How do I order this sample?
Click "Add to Sample Request" above, then visit our Sample Pack page to review your selections and submit. Samples ship within 3-5 business days via FedEx/DHL. First-time customers receive free samples (shipping costs apply).
What are the shipping costs and delivery time?
Shipping varies by destination: US $25-45 (5-7 days), Europe €30-50 (6-8 days), Australia/Asia $20-40 (4-6 days). Expedited 2-3 day service available. Costs calculated at checkout based on your address and sample quantity.
Can I request a different size or custom punching pattern?
Yes. Standard samples are 200x300mm, but we can provide custom sizes (up to 600x600mm) or specific hole patterns at no charge if you're evaluating for a production order. Email your specifications to support@leadingtopunion.com.
What is the load capacity of 2.5mm Perf-O Grip?
2.5mm gauge: 2.5 kN/m² (250 kg/m²) uniformly distributed load, max span 600mm between supports. For pedestrian walkways without equipment, this is sufficient. For forklift traffic or concentrated loads, specify 4.0mm or 5.0mm gauge.
Is Perf-O Grip suitable for food processing environments?
Yes. Stainless steel 304 or 316L versions meet FDA 21 CFR 177 for food contact surfaces. The high open-area design (40%) enables rapid washdown drainage, reducing microbial growth risk. Specify electropolished finish (Ra ≤0.8μm) for cleanroom-adjacent areas.
Can this be welded to steel frames?
Yes. For galvanized panels, remove zinc coating at weld zones (grind or chemical strip 25mm from weld line). Use E6013 or E7018 electrodes. Post-weld, apply zinc-rich paint (ASTM A780) to restore corrosion protection. Alternatively, use mechanical clips for removable installation.
What's the difference between Perf-O Grip and Grip Strut?
Perf-O Grip uses raised buttons around punched holes (smoother, better drainage, lighter weight). Grip Strut uses serrated teeth (more aggressive traction, heavier duty). Choose Perf-O Grip for comfort-focused applications (mezzanines, food plants) and Grip Strut for heavy traffic (outdoor ramps, industrial stairs).
Do you provide test certificates or material traceability?
Yes. Production orders include mill test certificates (3.1 per EN 10204) with chemical composition and mechanical properties. Galvanization certificates per ASTM A123/ISO 1461. Material traceability via heat number marking available upon request.
What if the sample doesn't meet my requirements?
No problem. Samples are for evaluation — if the button height, hole pattern, or surface finish doesn't match your needs, contact us to discuss alternatives. We can provide Grip Strut, Heavy Duty, or custom punched samples at no additional cost.
What are the minimum order quantities for production?
MOQ for standard sizes (1220x2440mm, 1220x3000mm): 100 m² (~35-40 panels). For custom sizes or special materials (316L, aluminum): 200 m² minimum. Prototyping runs (5-10 panels) available at prototype pricing for qualified projects.
