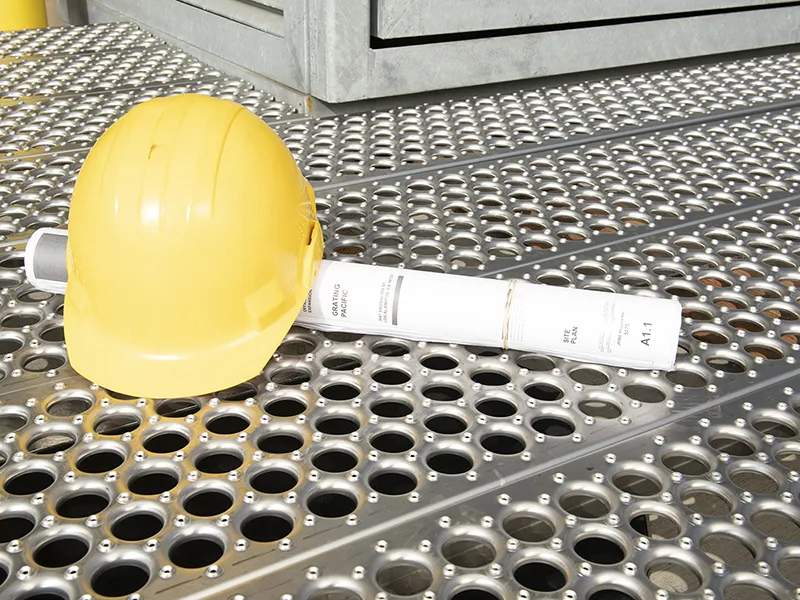

Hot-Dip Galvanized Perf-O-Grip Grating

Product Overview

Hot-dip galvanized Perf-O-Grip grating from Leading Top Union (领拓互联) combines the structural efficiency of punched diamond-shaped openings with the proven corrosion resistance of a zinc coating applied per ASTM A123. The base material is low-carbon steel (Q235B or ASTM A36), processed through a precision punching line that creates the characteristic 46x16mm diamond pattern. This pattern maximizes open area for drainage and light transmission while retaining the load-bearing capacity required for industrial walkways, platforms, and trench covers. The hot-dip galvanizing process, conducted in our Suzhou facility, produces a metallurgically bonded zinc-iron alloy layer with a minimum thickness of 85 microns on 3mm material, exceeding the ASTM A123 standard for structural steel sections.

Corrosion Protection Mechanism for Punched Edges

The self-healing property of the zinc coating is critical for perforated grating because the punching process creates cut edges that are inherently exposed. Unlike painted or powder-coated alternatives, hot-dip galvanizing forms a continuous protective layer that seals these edges and minor scratches through cathodic protection. For a 3mm thick grating panel with standard 46x16mm openings, the zinc coating provides a service life of 20 to 50 years depending on atmospheric conditions—20 years in industrial marine environments per ISO 9223 C5 classification, and up to 50 years in rural or light industrial settings (ISO 9223 C2-C3). This eliminates the recurring cost of field painting or coating repair, which typically adds 15-25% to lifecycle expenses for painted steel grating in outdoor installations.

Available Thicknesses and Load Performance Data

Hot-dip galvanized Perf-O-Grip grating is available in thicknesses from 2.0mm to 5.0mm, with standard panel sizes of 240x1220mm, 300x1220mm, and 400x2440mm. Custom dimensions can be produced to match specific project requirements, with tolerances held to ±1.5mm on length and width per EN 1090-2 EXC3 execution class. The diamond hole pattern provides a typical open area of 35-40%, which reduces wind loading on elevated platforms and allows debris to pass through without clogging. Load capacity for a 3mm thick panel at 600mm span reaches 500 kg concentrated load, with a safety factor of 1.5 applied per ASME B30.2 design guidelines. The grating performs reliably across temperature extremes from -40°C to +200°C without coating delamination or substrate embrittlement.

Applications & Industries

Offshore Oil and Gas Platform Installations

In oil and gas upstream and midstream operations, hot-dip galvanized Perf-O-Grip grating is specified for offshore platform walkways, mezzanine decks, and stair treads where salt spray and hydrocarbon exposure demand corrosion resistance beyond standard painted steel. A typical offshore installation in the North Sea or Gulf of Mexico uses 4mm thick grating with 600mm span to support personnel and light equipment loads up to 500 kg/m², meeting DNV-OS-E101 design requirements for helideck and access structures. The diamond pattern allows seawater and rain to drain immediately, reducing slip hazards and preventing ponding that accelerates localized corrosion. With zinc coating thickness of 100 microns minimum per ASTM A123, these installations routinely achieve 25-year service intervals between major maintenance cycles.

Mining and Mineral Processing Durability

Mining and mineral processing facilities use our galvanized grating for heavy-duty platforms, conveyor walkways, and screen decks in both open-pit and underground operations. The combination of low-carbon steel substrate and hot-dip galvanized coating withstands abrasive dust, chemical reagents, and high humidity environments typical of copper, iron, and gold processing plants. For a copper concentrator in Chile, we supplied 5mm thick panels with 400x2440mm dimensions, designed for 750 kg concentrated load at 800mm span per AS 1657-2018. The 46x16mm diamond openings allow fine ore particles and slurry to fall through without accumulating on walking surfaces, reducing cleaning frequency by 40% compared to solid plate alternatives. The galvanized coating resists attack from pH 5.5-8.5 process water and common flotation reagents.

Power Generation Facility Performance

Power generation facilities—including coal-fired, natural gas, and biomass plants—specify hot-dip galvanized Perf-O-Grip grating for turbine deck platforms, cooling tower access, and coal handling structures. The coating withstands continuous exposure to flue gas condensate, cooling tower drift, and ambient temperatures that cycle between -30°C and +50°C. For a 600 MW supercritical coal plant in China, we delivered 3,200 square meters of 3mm grating with custom 300x1220mm panels, each certified to support 400 kg concentrated load at 500mm span per GB 50017-2017. The open area of the diamond pattern reduces wind uplift forces on elevated platforms by approximately 35% compared to solid steel plate, which is critical for structures above 30 meters height. No maintenance painting is required for the life of the plant, saving an estimated ¥180 per square meter in recurring coating costs over 20 years.

Petrochemical and Refinery Chemical Resistance

Petrochemical and refinery applications demand grating that resists hydrogen sulfide, chlorides, and organic solvents while maintaining structural integrity. Hot-dip galvanized Perf-O-Grip grating meets these requirements with a zinc coating that forms a barrier against atmospheric corrosion in Zone 1 and Zone 2 classified areas per IEC 60079-10-1. For a refinery expansion in the Middle East, we supplied 4mm thick panels with 240x1220mm dimensions, designed for 600 kg concentrated load at 600mm span per API RP 2A-WSD. The diamond hole pattern prevents accumulation of flammable liquids and allows gas dispersion, reducing fire risk on process unit platforms. The galvanized coating is tested per ASTM B117 for 1,000 hours of salt spray resistance with no red rust formation, confirming suitability for coastal refinery environments with annual chloride deposition rates exceeding 300 mg/m²/day.

Shipbuilding and Offshore Wind Applications

Shipbuilding and offshore wind energy sectors use our grating for vessel walkways, turbine access platforms, and transition piece gratings. The hot-dip galvanized coating meets IMO MSC.313(88) requirements for fire resistance and slip resistance on marine structures. For a 10 MW offshore wind turbine foundation in the North Sea, we provided 5mm thick panels with 400x2440mm dimensions, each certified to withstand 1,200 kg concentrated load at 800mm span per DNV-ST-0126. The 46x16mm diamond pattern allows wave splash and rainwater to drain immediately, preventing ice formation in sub-zero conditions. The zinc coating thickness of 120 microns minimum ensures 30-year corrosion protection in offshore splash zone environments (ISO 9223 C5-M classification), eliminating the need for sacrificial anode systems on grating surfaces.

Why Choose Leading Top Union for Hot-Dip Galvanized Perf-O-Grip Grating

ISO 3834-2 Certified Manufacturing and Quality Control

Leading Top Union (领拓互联) operates an ISO 3834-2 certified welding facility in Suzhou, China, with integrated hot-dip galvanizing capabilities that ensure full quality control from raw material to finished product. Hot-dip galvanized Perf-O-Grip grating is produced under EN 1090-2 EXC3 execution class, which mandates documented traceability of all welding parameters, material certificates per EN 10204 3.1, and third-party inspection of coating thickness and adhesion. Every panel is tested for zinc coating uniformity per ASTM A123, with a minimum of five thickness measurements per panel using magnetic gauge methods. This certification framework is required by major EPC contractors for projects in oil and gas, power generation, and offshore wind, where non-conforming grating can delay commissioning and increase liability exposure.

Engineering Support and Custom Fabrication Services

Technical engineering support is provided for load capacity calculations, span optimization, and custom hole pattern configurations. For projects requiring non-standard diamond sizes or panel dimensions, finite element analysis (FEA) per ASME B30.2 is performed to verify deflection limits of L/200 at design load. Supplementary services including banding, notching, and curving of grating panels are offered to match complex structural layouts. With AWS D1.1 certified welders on staff, grating panels can be integrated with support frames, toe plates, and handrail systems under a single purchase order. This reduces procurement complexity for EPC firms managing multiple subcontractors on large-scale industrial projects.

Global Logistics and Expedited Delivery Options

Logistics and delivery reliability are critical for construction schedules, and our Suzhou facility ships hot-dip galvanized Perf-O-Grip grating to ports worldwide within 4-6 weeks of order confirmation. Standard panels are bundled with wooden separators to prevent coating damage during transit, and each bundle is labeled with material grade, coating thickness, and heat number for full traceability. For urgent projects, inventory of 3mm and 4mm panels in 240x1220mm and 300x1220mm sizes is maintained for expedited shipment within 10 working days. The quality documentation package includes mill test reports per EN 10204 3.1, galvanizing certificates per ASTM A123, and dimensional inspection reports per ISO 2768-m, satisfying the documentation requirements of most international EPC contracts.
