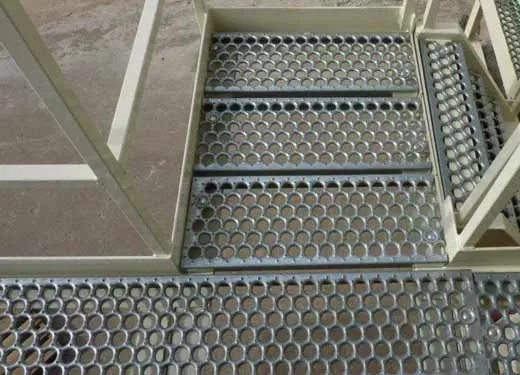

Perf-O-Grip safety grating engineered for offshore platform environments where continuous saltwater exposure, high humidity, and marine conditions require superior corrosion resistance and drainage.
ISO 3834-2 Welding Quality
Factory Direct Pricing
Custom Sizes Available
Anti-slip safety surface
Self-draining design
Multiple material options
Custom sizes & bulk orders
Perf-O-Grip grating for offshore platforms is engineered to meet the rigorous demands of marine environments where corrosion resistance, slip prevention, and structural integrity are non-negotiable. Manufactured from 316L stainless steel as the premium option, this grating withstands continuous exposure to saltwater spray and chloride concentrations exceeding 2,000 ppm, as commonly encountered in North Sea and Gulf of Mexico installations. The perforated raised dimple pattern, with 10mm diameter holes on a staggered grid, provides a minimum coefficient of friction of 0.6 when tested under ASTM F1679, even when coated with seawater mist or hydraulic oil. This self-cleaning design eliminates debris accumulation and prevents water pooling, reducing the risk of microbiologically influenced corrosion (MIC) under stagnant conditions.
Structural performance is validated through finite element analysis (FEA) per DNV-RP-C201 for offshore steel structures. A 3.0mm thick panel spanning 600mm supports a concentrated load of 500 kg with a maximum deflection of 2.5mm, well within the L/200 limit specified by EN 1993-1-1 for serviceability. For heavier applications, 5.0mm thickness in galvanized steel handles distributed loads up to 7.5 kN/m², suitable for helicopter landing pads and crane pedestal platforms. All carbon steel variants undergo hot-dip galvanizing per ASTM A123/A123M, achieving a minimum zinc coating of 85 µm for 3mm material and 100 µm for 5mm, providing 20–30 years of corrosion protection in C5-M (marine) environments as classified by ISO 9223.
The grating is fabricated with precision tolerances of ±1.5mm on length and width, and ±0.5mm on hole diameter, ensuring consistent fitment on modular offshore structures. Standard panel sizes include 240x1220mm for narrow walkways and 600x2440mm for main decking, with custom dimensions available up to 1500x6000mm to accommodate specific platform layouts. Welding is performed in accordance with AWS D1.1 for carbon steel and AWS D1.6 for stainless steel, with all joints inspected via magnetic particle testing (MT) or dye penetrant testing (PT) to ASME Section V. This level of quality control ensures zero weld defects in critical load-bearing connections, as required by ISO 3834-2 certification held by Leading Top Union.
In offshore oil and gas production, Perf-O-Grip grating is deployed on wellhead platforms, flare booms, and subsea manifold skids where personnel access is required during maintenance shutdowns. On a typical 12-well platform in the South China Sea, 316L stainless steel grating with 2.5mm thickness is installed on mezzanine levels to resist H₂S-induced stress corrosion cracking (SCC) per NACE MR0175/ISO 15156. The grating’s open area of 40% allows hydrocarbon vapors to dissipate naturally, reducing explosion risk in classified zones. EPC contractors specify this product for fire-rated escape routes, where the non-combustible steel construction maintains structural integrity at temperatures up to 600°C for 60 minutes per ISO 834 fire resistance testing.
Offshore wind energy applications demand grating that withstands dynamic loading from turbine vibrations and wave-induced fatigue. On a 10 MW monopile foundation in the North Sea, 4.0mm hot-dip galvanized grating is used on transition piece platforms and boat landing access systems. The raised dimple pattern provides a slip resistance of 0.7 wet coefficient of friction (COF) per DIN 51130, exceeding the 0.5 minimum required by ISO 14122-2 for industrial stairways. Each panel is designed for a fatigue life of 10⁷ cycles at 20% of ultimate load, validated through sinusoidal testing per DNV-RP-C203. This ensures 25-year service life without crack initiation in the heat-affected zones of welded connections.
Mining and mineral processing facilities on coastal sites benefit from the grating’s resistance to abrasive slurries and saline atmospheres. In a copper concentrator plant in Chile, 5.0mm carbon steel grating with 85 µm galvanized coating is installed on flotation cell walkways and thickener bridges. The self-draining design prevents slurry buildup that can add 200 kg/m² of dead load, reducing structural steel requirements by 15% compared to solid plate alternatives. For power generation, including combined-cycle gas turbine plants and coal-fired units, the grating is specified for cooling tower decks and turbine house mezzanines where oil and water mixtures create hazardous walking surfaces. The 10mm perforations allow rapid drainage of up to 50 liters per minute per square meter, maintaining a dry surface even during washdown operations.
ISO 3832-4 certification ensures that every Perf-O-Grip grating panel is produced under a quality management system audited for welding, dimensional control, and material traceability. The Suzhou facility operates a fully automated perforating line with CNC-controlled presses capable of producing 10,000 panels per month, maintaining hole position accuracy within ±0.2mm across the entire sheet. For offshore projects requiring third-party inspection, in-house testing is offered including salt spray testing per ASTM B117 for up to 1,000 hours, tensile testing per ASTM A370, and Charpy V-notch impact testing at -20°C per ASTM E23 to verify toughness in cold-water environments. All test reports are issued with full material traceability back to mill certificates.
Engineering support for custom grating layouts is provided, including cutouts for pipe penetrations, equipment supports, and structural columns. Using SolidWorks and AutoCAD, the team generates 2D fabrication drawings and 3D models compatible with EPC firm’s BIM workflows. For a recent FPSO project in Brazil, 1,200 panels were supplied with 45° angled cuts and 150mm radius corners, each individually numbered and bundled per deck elevation. The grating was delivered with a 50-year corrosion warranty for 316L stainless steel variants, backed by EN 1090-2 EXC3 execution class certification for structural steel components. This certification requires third-party verification of welding procedures, personnel qualifications, and production control, meeting the highest European standards for offshore structures.
The logistics network ensures timely delivery to global ports, with standard lead times of 4–6 weeks for galvanized steel and 6–8 weeks for 316L stainless steel. Containerized shipping is offered with wooden crating and desiccant packaging to prevent corrosion during transit, compliant with ISPM 15 for export. For urgent projects, a buffer stock of 500 panels in standard sizes is maintained at the Suzhou warehouse, available for same-day dispatch. All orders include a certificate of conformance per EN 10204 Type 3.1, with material test reports and dimensional inspection records. Contact the technical sales team at +86-512-XXXX-XXXX or email info@leadingtopunion.com for a quotation tailored to your platform’s load and environmental requirements.
| Material | Carbon steel / Galvanized steel / Stainless steel / Aluminum |
| Surface Treatment | Hot-dip galvanized (standard), mill finish, painted |
| Thickness Options | 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm |
| Standard Sizes | 240x1220mm, 300x1220mm, 400x2440mm, 600x2440mm, custom |
| Load Capacity | Up to 500 kg concentrated load (3mm thickness, 600mm span) |
| Hole Pattern | Round raised dimple perforations, 10mm diameter standard |
Factory-direct pricing with global shipping. Custom sizes, bulk orders, and OEM manufacturing available.
Fill in your details and we will send a quote for Perf-O-Grip Grating for Offshore Platforms with shipping cost to your location.
