Aluminum Perf-O-Grip Grating

Product Overview

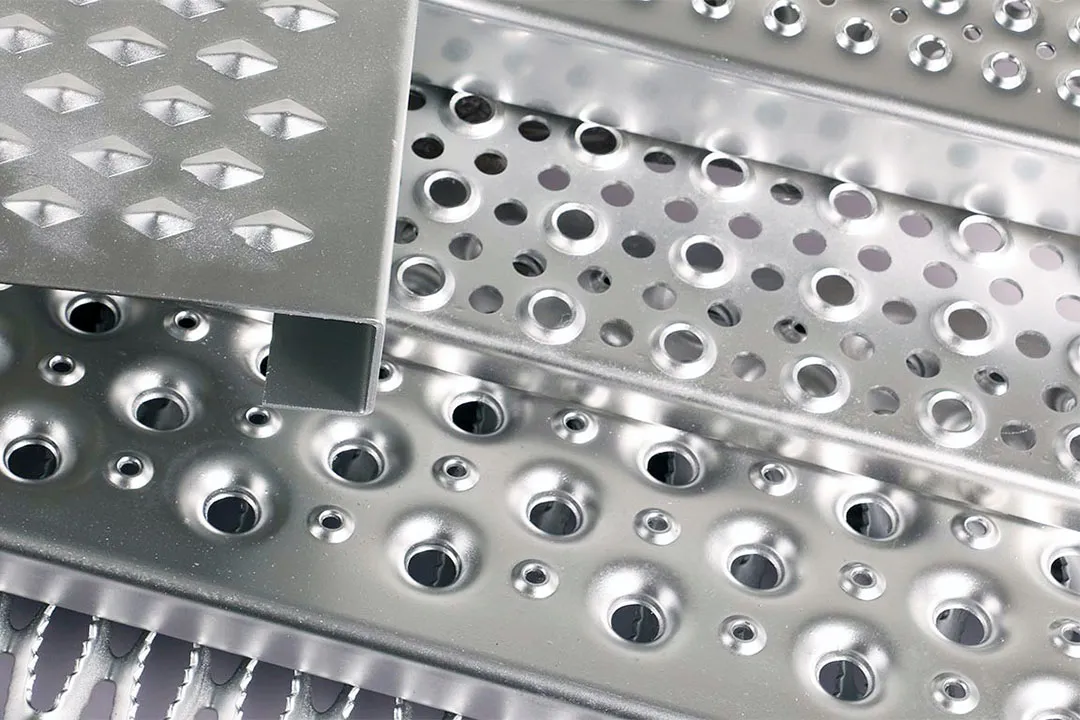

Aluminum Perf-O-Grip Grating from Leading Top Union (领拓互联) is a precision-engineered walkway and platform solution fabricated from ASTM B209 compliant 5052-H32 or 3003-H14 aluminum alloy. The diamond-shaped punched openings, measuring 46x16mm standard, are formed through a cold-punching process that preserves the material's temper and mechanical properties. This grating delivers a concentrated load capacity of up to 280 kg at a 600mm span for 3.0mm thickness, meeting the structural requirements of ISO 14122-2 for permanent means of access to machinery. The open area ratio of approximately 60% allows for efficient light transmission, water drainage, and debris passage, reducing slip hazards in wet or contaminated environments. Each panel is manufactured with a mill finish, relying on the natural aluminum oxide layer (Al₂O₃) for corrosion protection, which eliminates the need for hot-dip galvanizing or powder coating typical of steel gratings.

Alloy Selection and Mechanical Properties

The material selection of 5052-H32 or 3003-H14 is deliberate for structural grating applications. Alloy 5052-H32 offers a tensile strength of 215 MPa minimum and yield strength of 160 MPa, providing superior fatigue resistance for dynamic loading scenarios such as vibrating machinery platforms or pedestrian traffic in offshore wind turbine towers. Alloy 3003-H14, with a tensile strength of 150 MPa, is chosen for applications requiring enhanced formability and weldability, particularly in complex custom configurations. Both alloys exhibit excellent resistance to stress corrosion cracking in marine environments, as validated by ASTM G67 testing. The grating is available in standard panel sizes of 240x1220mm, 300x1220mm, and 400x2440mm, with custom dimensions fabricated to ±1.5mm tolerance per EN 1090-2 EXC3 execution class. Thickness options of 2.0mm, 2.5mm, 3.0mm, and 4.0mm allow engineers to optimize weight versus load requirements, with the 4.0mm variant supporting concentrated loads exceeding 350 kg at reduced spans.

Thermal Performance and Hazardous Environment Suitability

Thermal performance is a critical differentiator for aluminum Perf-O-Grip grating in extreme environments. With a thermal conductivity of 140-150 W/m·K for 5052-H32, the grating rapidly conducts heat away from the walking surface, preventing ice accumulation in cold climates down to -40°C operating temperatures. This property is particularly valuable for offshore platforms in the North Sea or Arctic oil and gas facilities where ice buildup on steel grating creates slip hazards and adds dead load. The non-sparking characteristic, verified through ASTM D2511 friction spark testing, makes this grating suitable for ATEX and IECEx classified explosive atmosphere zones (Zone 1, Zone 2, Zone 21, Zone 22) in petrochemical refineries, grain handling facilities, and chemical processing plants. The material's density of 2.66 g/cm³ results in a panel weight approximately one-third that of equivalent steel grating, reducing structural dead load by up to 67% and enabling lighter support beams, smaller foundations, and simplified logistics for remote installations.

Applications & Industries

In offshore oil and gas production, aluminum Perf-O-Grip grating is specified for platform walkways, mezzanine decks, and helicopter landing pad surrounds where weight reduction directly impacts topside load budgets. A typical 3.0mm thick panel measuring 400x2440mm weighs approximately 8.5 kg, compared to 25 kg for a steel equivalent, allowing EPC contractors to reduce platform steel tonnage by 15-20% on topside structures. The grating meets DNV-OS-E101 and NORSOK M-001 standards for offshore structures, with the natural oxide layer providing corrosion resistance in C5-M and CX corrosivity categories per ISO 12944-2. For subsea applications, the grating is used in valve access platforms and ROV landing areas, where its non-magnetic properties prevent interference with sensitive navigation and communication equipment. The open diamond pattern ensures that seawater, drilling mud, and hydraulic fluids drain freely, maintaining slip resistance with a coefficient of friction above 0.6 when wet, as measured by ASTM F1679.

Renewable Energy Sector Performance

The renewable energy sector, particularly offshore wind, relies on aluminum Perf-O-Grip grating for turbine tower internal platforms, transition piece access decks, and substation cable trays. With offshore wind farms now operating in water depths exceeding 50 meters and turbine capacities above 15 MW, the grating's lightweight nature reduces crane lift requirements during installation. A 3.0mm grating panel for a 6-meter diameter turbine tower section weighs under 12 kg, enabling single-person handling and reducing installation time by 30% compared to steel alternatives. The material's fatigue endurance limit of 70 MPa at 10⁷ cycles (per ASTM E466) ensures reliable performance under constant wind-induced vibration. In cold climate wind farms, such as those in the Baltic Sea or Canadian Arctic, the thermal conductivity prevents ice bridging between grating bars, maintaining clear access for maintenance crews during winter months. The grating is fully recyclable at end of life, with aluminum scrap value currently exceeding $1,500 per metric ton, supporting circular economy requirements in EU and UK renewable energy projects.

Mining and Chemical Processing Durability

Mining and mineral processing operations use aluminum Perf-O-Grip grating in concentrator plants, heap leach pads, and tailings management facilities where corrosive chemicals and abrasive dusts are present. The grating's resistance to sulfuric acid, sodium cyanide, and ammonium nitrate solutions, as documented in ASTM G31 immersion testing, eliminates the need for periodic coating maintenance that steel grating requires. In copper smelters and alumina refineries, operating temperatures up to 120°C are accommodated without loss of structural integrity, as the 5052-H32 alloy retains 85% of its room temperature yield strength at 100°C. The non-sparking property is critical in underground coal mines and explosive gas zones (per AS/NZS 60079.10.1) where methane or coal dust ignition risks must be minimized. The open diamond pattern allows fine ore particles and process water to pass through, preventing material buildup that could add dead load or create fire hazards. With a service life exceeding 25 years in moderate corrosive environments, the total cost of ownership is 40-50% lower than painted or galvanized steel grating when factoring in maintenance and replacement cycles.

Why Choose Leading Top Union for Aluminum Perf-O-Grip Grating

Leading Top Union (领拓互联) manufactures aluminum Perf-O-Grip grating under a certified quality management system that includes ISO 3834-2 for welding of metallic materials, EN 1090-2 EXC3 for structural steel and aluminum components, and AWS D1.1 for structural welding. These certifications are not merely decorative—they require documented traceability from raw material receipt through final inspection, with mechanical testing per ASTM B557, dimensional verification to ±1.0mm on critical hole patterns, and load testing to validate design capacities. The Suzhou facility operates CNC-controlled punch presses with 0.01mm positioning accuracy, ensuring consistent hole geometry across production runs of 100 to 10,000 panels. Each batch of 5052-H32 or 3003-H14 aluminum is verified against mill certificates for chemical composition (per ASTM E1251) and mechanical properties, with in-house tensile testing on a 100 kN universal testing machine calibrated to ISO 7500-1 Class 1. This level of quality control is essential for EPC firms supplying to TotalEnergies, Shell, or Equinor projects where material traceability is contractual.

Engineering Support and Custom Fabrication

The engineering team provides technical support for load calculations, span optimization, and custom hole pattern development based on your specific project requirements. Using finite element analysis (FEA) per ASME BPVC Section VIII Division 2, we can validate grating performance under concentrated loads, uniform distributed loads, and point loads from equipment feet or ladder bases. For projects requiring compliance with EN 1999-1-1 (Eurocode 9) for aluminum structures, we provide design resistance values for bending, shear, and bearing at the connection points. Custom panel sizes are fabricated to your exact dimensions with a maximum tolerance of ±1.5mm on length and width, and ±0.5mm on thickness, ensuring seamless integration with existing steel or aluminum support frames. Optional surface treatments are offered including anodizing (MIL-A-8625 Type II, 5-10 micron) for enhanced wear resistance in high-traffic areas, or chemical conversion coating (MIL-DTL-5541 Type I) for improved paint adhesion if color coding is required for safety zones.

Global Logistics and Procurement Support

Global logistics and supply chain reliability are critical for international EPC projects with tight construction schedules. Leading Top Union maintains a finished goods inventory of 50,000+ panels in standard sizes, enabling lead times of 2-4 weeks for most orders, with custom fabrications typically shipping within 4-6 weeks. Packaging standards comply with ISPM 15 for heat-treated wooden crates and ASTM D4169 for distribution cycle testing, ensuring panels arrive undamaged at job sites in Rotterdam, Houston, Singapore, or Dubai. Full documentation packages are provided including material test reports (MTRs), certificates of conformance, NORSOK M-650 qualification documentation, and EN 10204 Type 3.1 inspection certificates. For buyers requiring third-party inspection, coordination with DNV, Lloyd's Register, or Bureau Veritas is available at no additional project management cost. Contact our technical sales team at info@leadingtopunion.com or +86-512-xxxx-xxxx for a project-specific quotation, load capacity calculation, or sample panel for your next offshore, mining, or industrial access project.
