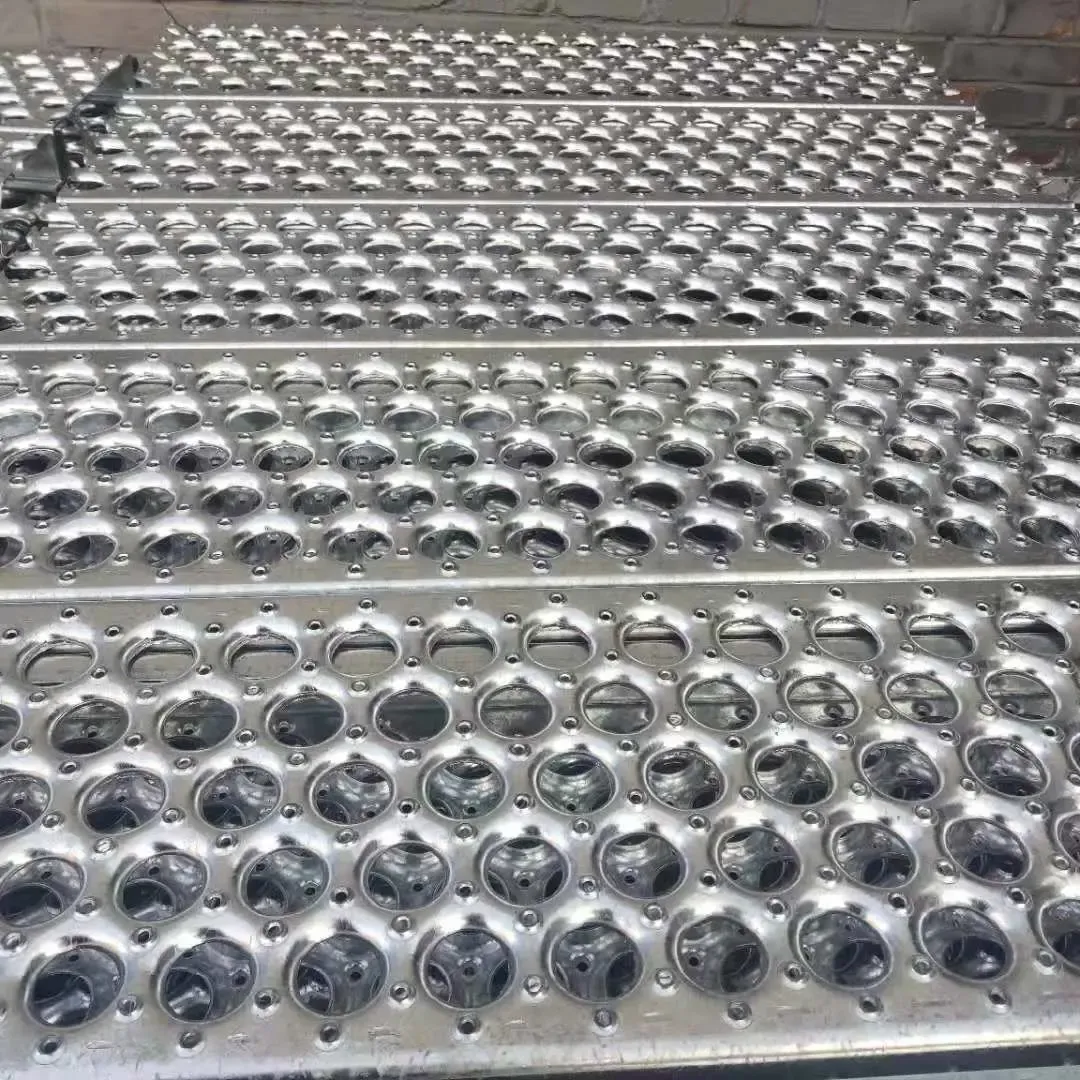

Perf-O-Grip safety grating for food processing environments where sanitary design, chemical washdown resistance, and food-safe materials are mandatory requirements.
ISO 3834-2 Welding Quality
Factory Direct Pricing
Custom Sizes Available
Anti-slip safety surface
Self-draining design
Multiple material options
Custom sizes & bulk orders
Perf-O-Grip grating for food processing plants is engineered to meet the rigorous hygiene and structural demands of wet, high-sanitation environments. Manufactured from 304 or 316L stainless steel (ASTM A240), this grating complies with FDA 21 CFR 175.300 and USDA 3-A Sanitary Standards for food contact surfaces. The raised dimple perforation pattern—typically 10 mm diameter with a 20 mm staggered center—creates a smooth, non-porous top surface that eliminates bacterial harborage points. Unlike traditional serrated or welded bar gratings, the Perf-O-Grip design has no exposed crevices, welds, or coatings that could trap organic matter or flake into product streams. This makes it suitable for direct contact with raw meat, dairy, poultry, and bakery goods under HACCP and GMP protocols.
The grating is available in thicknesses from 2.0 mm to 5.0 mm (14 ga to 7 ga), with standard panel sizes up to 600 mm x 2440 mm. For heavy-duty applications such as palletizing stations or ingredient bin platforms, the 3.0 mm thickness in 316L stainless steel supports a concentrated load of 500 kg over a 600 mm span with a deflection of less than 2.5 mm, per ASTM E1190. The perforated hole pattern reduces overall weight by approximately 40% compared to solid plate, while maintaining structural integrity for walkways, mezzanines, and drainage covers. Each panel is deburred and passivated per ASTM A967 to restore the chromium oxide layer, ensuring corrosion resistance against CIP (clean-in-place) chemicals like peracetic acid (up to 200 ppm) and sodium hydroxide (pH 12–13) at temperatures up to 82°C.
Surface slip resistance is a critical parameter in food processing, where floors are continuously exposed to water, animal fats, and vegetable oils. The raised dimple pattern on Perf-O-Grip grating provides a coefficient of friction (COF) of 0.6–0.8 when wet, measured per ASTM F1679, exceeding OSHA’s recommended minimum of 0.5 for walking surfaces. This anti-slip performance is achieved without abrasive particles or polymer inserts that could degrade under thermal cycling or chemical attack. The grating’s open area—typically 40–50% depending on hole pattern—allows rapid drainage of washdown water and prevents pooling of liquids that promote bacterial growth. For applications requiring even finer debris containment, custom perforations down to 6 mm diameter are available, reducing the risk of product contamination from falling objects or organic matter passing through the grating.
Thermal expansion is a key consideration in food plants with hot washdown cycles. Stainless steel Perf-O-Grip grating has a coefficient of thermal expansion of 17.3 µm/m·°C (316L), which is accounted for in engineering calculations for spans exceeding 1200 mm. A 5 mm expansion gap per 3 meters of grating run is recommended when installed in environments with temperature swings from 4°C (cold storage) to 93°C (steam cleaning). The grating is supplied with matching stainless steel fasteners (ASTM F593) to prevent galvanic corrosion. For carbon steel or galvanized options, hot-dip galvanizing per ASTM A123 (minimum 85 µm coating thickness) provides a durable barrier in dry processing areas, though stainless steel is preferred for wet zones to avoid zinc dissolution in acidic washdowns.
In meat and poultry processing facilities, Perf-O-Grip grating is installed on kill floor platforms, evisceration lines, and chilling room walkways. A typical installation at a 50,000 sq ft USDA-inspected plant uses 3.0 mm 304 stainless steel grating with 10 mm perforations over 600 mm spans. This configuration supports forklift traffic (up to 3,000 kg axle load) while allowing blood and offal to drain through without clogging. The smooth top surface reduces cleaning time by 30–40% compared to serrated grating, as verified by CIP cycle audits. For poultry facilities operating at 40,000 birds per hour, the grating’s open area prevents feather and fat accumulation, maintaining airflow for evaporative cooling systems that keep ambient temperatures below 10°C.
Dairy processing plants use Perf-O-Grip grating in cheese aging rooms, milk receiving bays, and CIP chemical storage areas. The 316L grade is specified for its resistance to lactic acid (pH 3.5–4.5) and chlorine-based sanitizers (up to 200 ppm free chlorine). In a 10,000 sq ft cheese production facility, 2.5 mm thick grating with 8 mm perforations is used on elevated catwalks above vats, where it withstands 80°C hot water washdowns twice per shift. The grating’s non-porous surface prevents biofilm formation, a critical requirement for facilities producing extended shelf-life (ESL) dairy products. Load testing per EN 1991-1-1 confirms that 3.0 mm 316L grating on 500 mm spans supports 750 kg/m² uniform load with less than 1.5 mm permanent deformation after 10,000 cycles.
Bakery and snack food operations benefit from Perf-O-Grip grating in flour handling areas, proofing rooms, and packaging lines. The grating’s fine perforations (6–8 mm diameter) prevent dough scraps and crumbs from falling to lower levels, reducing pest attraction and cleaning labor. In a 200,000 sq ft commercial bakery producing 1 million loaves per day, 4.0 mm carbon steel grating with hot-dip galvanizing is used on ingredient bin platforms. The galvanized coating withstands dry flour dust without corrosion, while the raised dimple pattern provides traction for workers carrying 25 kg flour bags. For facilities using enzymatic dough conditioners (pH 4–6), 304 stainless steel is recommended to avoid pitting from organic acids. The grating’s weight reduction (40% lighter than solid plate) allows installation on existing structural steel without reinforcement.
Beverage processing plants—including breweries, soft drink bottlers, and juice concentrate facilities—use Perf-O-Grip grating on tank platforms, filling line mezzanines, and wastewater treatment areas. In a 500,000 hl/year brewery, 3.0 mm 304 stainless steel grating with 10 mm perforations supports 1,200 kg concentrated loads from keg handling equipment. The grating’s open area (45%) allows CO₂ ventilation from fermentation tanks, preventing gas accumulation in confined spaces. For juice plants using citric acid (pH 2.5–3.5) and hot caustic CIP (80°C, 2% NaOH), 316L grating with 2.5 mm thickness provides 15+ years of service life, as documented in accelerated corrosion testing per ASTM G48 Method B. The grating is supplied with beveled edges to eliminate tripping hazards on filling line catwalks.
Leading Top Union (Suzhou) brings 15 years of fabrication experience to Perf-O-Grip grating production, with ISO 3834-2 certification for welding quality assurance and EN 1090-2 EXC3 for structural execution. Four CNC perforating presses with 200-ton capacity are operated at the factory, capable of producing panels up to 6,000 mm x 1,500 mm with hole placement tolerance of ±0.2 mm. For food processing applications, a dedicated stainless steel production line segregated from carbon steel operations is maintained to prevent cross-contamination. Each panel is laser-marked with material grade, heat number, and production date for full traceability, meeting the documentation requirements of FDA 21 CFR Part 117 (FSMA) and BRC Global Standard for Food Safety.
The quality control process includes 100% dimensional inspection per ASTM E29, surface finish verification to Ra ≤ 0.8 µm for food contact areas, and load testing per ASTM E1190 on every production batch. For 316L stainless steel grating, intergranular corrosion testing per ASTM A262 Practice E is performed to ensure resistance to sensitization during welding. The passivation process follows ASTM A967 with a nitric acid concentration of 20–25% at 49–60°C, achieving a free iron content below 0.5 µg/cm² as measured by ferroxyl testing. Third-party inspection by SGS, TÜV, or Bureau Veritas is also offered at no additional cost for EPC contractors requiring ISO 17025 accredited certification.
For global food processing projects, engineering support is provided including structural calculations per ASCE 7-22, seismic load analysis, and thermal expansion compensation. The in-house engineering team uses FEA software (ANSYS 2024) to optimize hole patterns for specific load requirements, reducing material weight by up to 15% without compromising safety factors. 304 and 316L stainless steel coils from POSCO and Baosteel are stocked with mill certificates per EN 10204 Type 3.1, ensuring consistent chemistry (e.g., 316L: C ≤ 0.03%, Mo 2.0–2.5%, Ni 10–14%). Lead times for standard panels (up to 600 mm x 2440 mm) are 10–15 working days from order confirmation, with expedited production available for emergency shutdown replacements.
Commitment to food safety extends beyond product quality. Custom fabrication services are offered including plasma-cut openings for pipes (up to 300 mm diameter), beveled edges for flush transitions, and integrated toe plates (100 mm high per OSHA 1910.29). Each grating panel is packaged in polyethylene film with desiccant packs for moisture-sensitive stainless steel, then crated in plywood boxes for ocean freight. For USDA facilities requiring sanitary design, grating can be supplied with 3 mm radius fillet welds at all joints, eliminating 90° corners that trap bacteria. With AWS D1.1 certified welders on staff, all structural welds meet the requirements of ASME B31.3 for process piping supports. Contact the technical sales team at info@leadingtopunion.com for project-specific load calculations and material recommendations.
| Material | Carbon steel / Galvanized steel / Stainless steel / Aluminum |
| Surface Treatment | Hot-dip galvanized (standard), mill finish, painted |
| Thickness Options | 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm |
| Standard Sizes | 240x1220mm, 300x1220mm, 400x2440mm, 600x2440mm, custom |
| Load Capacity | Up to 500 kg concentrated load (3mm thickness, 600mm span) |
| Hole Pattern | Round raised dimple perforations, 10mm diameter standard |
Factory-direct pricing with global shipping. Custom sizes, bulk orders, and OEM manufacturing available.
Fill in your details and we will send a quote for Perf-O-Grip Grating for Food Processing Plants with shipping cost to your location.
