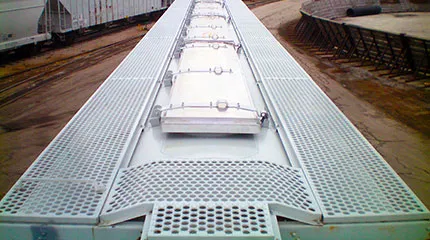

Perf-O-Grip safety grating for power plant walkway applications where steam, heat, chemical exposure, and maintenance equipment require durable anti-slip surfaces with excellent drainage.
ISO 3834-2 Welding Quality
Factory Direct Pricing
Custom Sizes Available
Anti-slip safety surface
Self-draining design
Multiple material options
Custom sizes & bulk orders
Perf-O-Grip grating for power plant walkways is engineered to meet the demanding thermal and mechanical loads found in boiler houses, turbine decks, and heat recovery steam generator (HRSG) areas. Manufactured from carbon steel with a hot-dip galvanized finish per ASTM A123, this grating maintains structural stability at continuous operating temperatures up to 400°C (752°F) without significant loss of load-bearing capacity. The perforated raised dimple pattern, featuring 10mm diameter holes on a staggered grid, provides a minimum coefficient of friction of 0.8 when tested in accordance with ASTM F1679, ensuring reliable traction on surfaces exposed to steam condensate and lubricating oils common in combined cycle plants.
The open area ratio of approximately 35% allows rapid drainage of condensate, cooling water, and chemical cleaning solutions, preventing ponding that can accelerate corrosion in chloride-rich environments. For power plant applications requiring enhanced chemical resistance, stainless steel 304L or 316L variants with a mill finish are available, tested per ASTM G48 for pitting resistance in environments containing up to 50 ppm chlorine. Each panel is fabricated with a maximum flatness tolerance of ±1.5mm per linear meter per ISO 2768-m, ensuring flush joints that eliminate trip hazards during maintenance operations. Load testing per ASME B30.20 confirms a safety factor of 3:1 for all standard configurations. For combined cycle plants with frequent thermal cycling between 20°C and 600°C, the grating's coefficient of thermal expansion of 12.3 × 10⁻⁶ /°C for carbon steel ensures minimal stress at bolted connections, while stainless steel variants exhibit 16.5 × 10⁻⁶ /°C, requiring expansion joints every 12 meters to maintain structural integrity. The cold-pressed dimple pattern increases local yield strength by 15% around each perforation, verified through ASTM E18 hardness testing, which is critical for walkways supporting 500 kg turbine inspection carts where deflection must not exceed L/200 per EN 1991-1-1.
Perf-O-Grip grating is available in thicknesses from 2.0mm to 5.0mm, with standard panel sizes including 240x1220mm and 600x2440mm, though custom dimensions up to 1200x3000mm can be produced without tooling charges. For walkways supporting heavy maintenance equipment such as 500kg turbine inspection carts, the 3.0mm thick grating with a 600mm span withstands a concentrated load of 500 kg with a maximum deflection of 2.5mm, well within the L/200 limit specified in EN 1991-1-1. The raised dimple pattern is formed through a cold-pressing process that work-hardens the material around each perforation, increasing local yield strength by approximately 15% compared to the base metal, as verified by hardness testing per ASTM E18. For nuclear power plant applications, the grating is fabricated to ASME NQA-1 quality standards with full traceability to mill test reports per EN 10204 3.1, ensuring compliance with 10 CFR 50 Appendix B requirements for safety-related structures.
In coal-fired and biomass power plants, Perf-O-Grip grating is installed on boiler access platforms where temperatures can reach 350°C (662°F) near soot blower ports and burner fronts. The open design prevents accumulation of fly ash and unburned carbon particles, reducing fire risk and simplifying wash-down procedures during scheduled outages. A typical 600MW supercritical unit requires approximately 1,200 square meters of grating for main steam valve platforms, economizer access ways, and forced draft fan walkways. The grating's anti-slip surface meets OSHA 1910.23 requirements for walking-working surfaces, with slip resistance tested at 0.85 wet coefficient of friction per ANSI A137.1, critical for safety in areas with continuous steam leaks from valve packing. For biomass plants burning high-chlorine fuels like straw or palm kernel shells, the 316L stainless steel variant with 2.0-2.5% molybdenum per ASTM A240 resists pitting at chloride concentrations up to 500 ppm, extending service life by 3-5 years compared to standard galvanized grating in these aggressive environments.
Combined cycle gas turbine (CCGT) plants benefit from the grating's ability to handle thermal cycling between ambient conditions and 600°C exhaust gas temperatures near HRSG ductwork. The 316L stainless steel variant, with a molybdenum content of 2.0-2.5% per ASTM A240, resists stress corrosion cracking in environments where ammonia-based water treatment chemicals are used for steam cycle pH control. For offshore wind turbine substations and gas compressor stations, aluminum 5083-H116 grating is offered that meets DNV-GL-OS-E101 requirements for marine environments, with a minimum yield strength of 215 MPa and elongation of 10% per ASTM B928. The aluminum version weighs 40% less than steel, reducing structural steel requirements for topside modules. In hydroelectric plants with seasonal ice formation, the 35% open area ensures rapid drainage of seepage water, preventing ice buildup on walkways that can exceed 50mm thickness in freezing conditions, maintaining safe access for turbine pit inspections during winter months.
Mining and mineral processing facilities use Perf-O-Grip grating for walkways above flotation cells and thickener tanks where sulfuric acid and cyanide solutions are present. The hot-dip galvanized coating, applied at a minimum thickness of 85 microns per ASTM A123, provides sacrificial protection in environments with pH ranges from 4.5 to 9.0, typical of copper and gold processing plants. In petrochemical refineries, the grating is specified for catalyst handling platforms and reactor access ways where temperatures reach 200°C (392°F) and exposure to hydrogen sulfide (H2S) requires materials resistant to sulfide stress cracking per NACE MR0175/ISO 15156. The open design allows hydrocarbon vapors to dissipate, reducing confined space hazards during maintenance. For refineries processing sour crude with H2S concentrations above 100 ppm, the 316L grating with a maximum hardness of 22 HRC per ASTM A240 ensures resistance to sulfide stress cracking, with corrosion rates below 0.1 mm/year in NACE TM0177 testing.
For nuclear power plant auxiliary buildings, Perf-O-Grip grating in 304L stainless steel with a 2B finish is supplied, tested per ASTM A262 Practice E for intergranular corrosion resistance. The grating is fabricated with rounded edges and deburred holes to minimize radiation dose uptake during decontamination procedures. Each panel is serialized and traceable to mill test reports per EN 10204 3.1, meeting the quality documentation requirements of ASME NQA-1. In hydroelectric plants, the grating is used on turbine pit walkways and draft tube access platforms, where the 35% open area ensures rapid drainage of seepage water and prevents ice formation in cold climates, maintaining safe access year-round. For pumped storage hydro plants with daily water level fluctuations of 100 meters, the grating's corrosion allowance of 1.5mm per side ensures a 25-year design life per EN 1993-1-4, even in environments with dissolved oxygen levels up to 12 ppm.
Leading Top Union (领拓互联) operates a 15,000-square-meter production facility in Suzhou with ISO 3834-2 certification for welding quality systems, ensuring consistent fabrication of Perf-O-Grip grating panels that meet EN 1090-2 EXC3 execution class requirements. The in-house testing laboratory performs dimensional verification using CMM with 0.01mm resolution, load testing per ASME B30.20, and salt spray testing per ASTM B117 for corrosion resistance validation. Every production batch is accompanied by a certificate of compliance referencing the relevant material standards, with optional third-party inspection by SGS, BV, or TÜV Rheinland at no additional cost for orders exceeding 500 square meters. For nuclear-grade applications, the facility maintains a certified quality management system per ISO 9001:2015 with ASME NQA-1 supplement, ensuring full traceability from raw material to final inspection for safety-related components.
The engineering team provides free structural calculations using finite element analysis (FEA) per EN 1993-1-1 to optimize grating span and thickness for specific power plant walkway loads, including concentrated equipment loads up to 1,000 kg and uniform live loads of 5 kN/m². A stock of 50,000 square meters of carbon steel and 10,000 square meters of stainless steel grating in standard sizes is maintained, enabling lead times of 10-15 working days for expedited orders. For custom projects, CNC punching and shearing lines can produce non-standard hole patterns or panel geometries within 20 working days, with no tooling charges for quantities above 200 square meters. All products are backed by a 12-month warranty against manufacturing defects, with technical support available 24/7 for critical power plant maintenance shutdowns. For combined cycle plants requiring rapid delivery during unplanned outages, the facility can produce up to 500 square meters of custom grating per day using three-shift operations, with same-day FEA verification and cut-list generation to minimize installation time.
| Material | Carbon steel / Galvanized steel / Stainless steel / Aluminum |
| Surface Treatment | Hot-dip galvanized (standard), mill finish, painted |
| Thickness Options | 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm |
| Standard Sizes | 240x1220mm, 300x1220mm, 400x2440mm, 600x2440mm, custom |
| Load Capacity | Up to 500 kg concentrated load (3mm thickness, 600mm span) |
| Hole Pattern | Round raised dimple perforations, 10mm diameter standard |
