Perf-O-Grip safety grating for mining walkway applications where ore dust, water, heavy boot traffic, and equipment vibration demand self-cleaning drainage and reliable traction.
ISO 3834-2 Welding Quality
Factory Direct Pricing
Custom Sizes Available
Anti-slip safety surface
Self-draining design
Multiple material options
Custom sizes & bulk orders

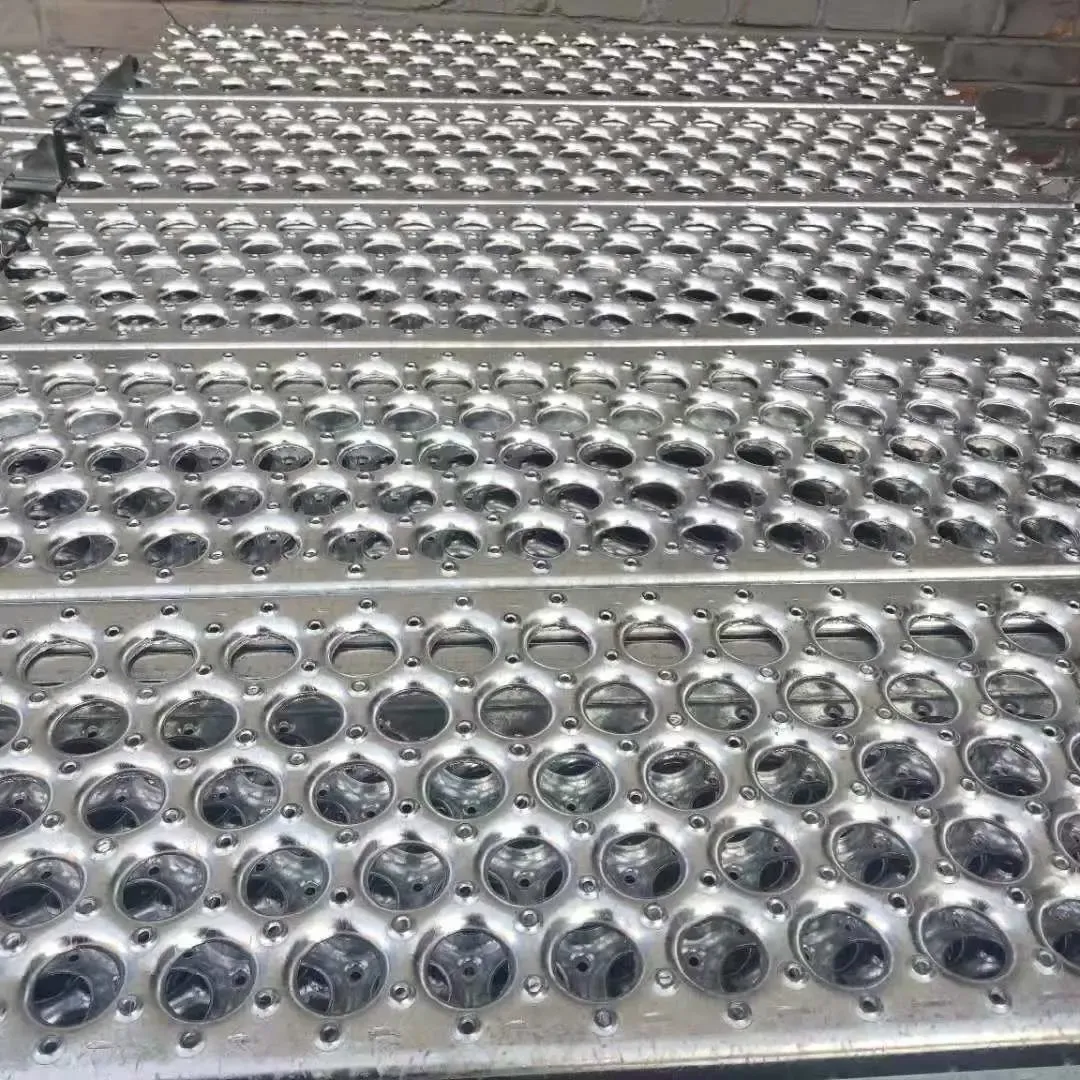

Perf-O-Grip grating from Leading Top Union (领拓互联) is engineered specifically for the demanding environments of mining walkways, where safety, durability, and maintenance efficiency are non-negotiable. Manufactured in the Suzhou facility under ISO 3834-2 and EN 1090-2 EXC3 certifications, this grating features a raised dimple perforation pattern that creates a mechanical interlock with boot soles, delivering a coefficient of friction exceeding 0.8 when tested per ASTM F1679. The 10mm diameter round holes are spaced to provide 40-45% open area, allowing fine ore dust, mud slurry, and water to pass through immediately upon contact. This self-cleaning geometry prevents the accumulation of debris that can turn standard grating into a slipping hazard or a fire risk in coal processing areas. Each panel is fabricated from hot-rolled carbon steel meeting ASTM A36 or EN 10025-2 S235JR specifications, with thickness options from 2.0mm to 5.0mm to match specific load requirements.
The structural design of Perf-O-Grip grating is validated through finite element analysis (FEA) per ASME BPVC Section VIII Div. 1 methodologies, ensuring predictable performance under cyclic loading from personnel and equipment. For a standard 3.0mm thick panel spanning 600mm between supports, the concentrated load capacity reaches 500 kg with a deflection of less than 2.5mm, well within the L/200 limit specified in EN 1993-1-1 for industrial walkways. The raised dimple pattern, formed through a cold-pressing process, increases the effective section modulus by approximately 15% compared to flat perforated sheets of equivalent thickness, providing additional stiffness without added weight. This is critical for suspended walkways in underground mines where every kilogram of structural dead load affects hoisting and support requirements. The grating is available in standard panel sizes of 240x1220mm, 300x1220mm, 400x2440mm, and 600x2440mm, with custom dimensions achievable up to 1500mm width and 6000mm length for specialized applications.
Surface treatment options are selected based on the specific chemical environment of the mine. The standard hot-dip galvanized finish, applied per ASTM A123/A123M, provides a zinc coating thickness of 85-120 microns on 3.0mm material, offering corrosion protection in acidic mine water with pH levels as low as 4.5. For operations in copper leaching facilities or areas with chloride concentrations exceeding 500 ppm, stainless steel grade 316L (UNS S31603) with a molybdenum content of 2.0-2.5% is recommended to resist pitting and crevice corrosion per ASTM G48 Method A testing. Aluminum alloy 6061-T6 options are available for lightweight installations in ventilation shafts or temporary walkways, offering a density of 2.70 g/cm³—one-third that of carbon steel—while maintaining yield strength of 240 MPa. Each panel is fabricated with a dimensional tolerance of ±1.5mm on length and width per ISO 2768-m, ensuring consistent fitment across multiple support structures without field modification.
In underground hard-rock mining operations, Perf-O-Grip grating is deployed on elevated walkways above sump areas and processing equipment where mud and ore slurry accumulation is constant. A typical installation in a Canadian gold mine uses 4.0mm thick galvanized panels spanning 900mm between steel beams, supporting maintenance personnel carrying tools up to 25 kg while allowing drill cuttings and wash water to drain freely. The open area design reduces the need for manual cleaning by 60-70% compared to checker plate or serrated bar grating, as documented in maintenance logs from operations in the Sudbury Basin. The raised dimple pattern maintains grip even when boots are coated with wet clay or fine iron ore dust, with slip resistance tested per DIN 51130 achieving classification R12 for oily and wet conditions. This is particularly important in decline access tunnels where water seepage from rock faces creates persistent wet surfaces.
Surface mining and beneficiation plants benefit from Perf-O-Grip grating on conveyor transfer towers, crusher platforms, and screening station walkways. In a copper concentrator in Chile, 5.0mm thick stainless steel 316L panels with 10mm dimple perforations are installed on a 30-degree incline walkway leading to a secondary crusher, where they withstand the impact of falling rock fragments up to 50 mm in diameter without deformation. The grating supports a live load of 4.8 kN/m² per EN 1991-1-1 Category C3 for areas with crowd congestion, while the self-cleaning holes prevent the buildup of copper concentrate dust that can create explosive atmospheres when dry. The panels are secured with stainless steel J-bolts and saddle clips at 300mm intervals, allowing rapid removal for access to underlying conveyor rollers or chute liners without disturbing adjacent sections. This modular replacement capability reduces walkway downtime by 80% compared to welded grid systems.
In coal preparation plants and thermal power generation facilities handling lignite or bituminous coal, Perf-O-Grip grating provides critical ventilation and fire safety benefits. The 40% open area allows methane and coal dust to disperse naturally, reducing the risk of accumulation in dead zones beneath walkways. A 600mm wide panel of 3.0mm galvanized steel spanning 1200mm supports a uniform load of 3.0 kN/m² per AS/NZS 1170.1 for industrial platforms, while the raised dimples provide traction for workers wearing steel-toed boots on surfaces coated with fine coal dust. The grating is installed with a 1-2% slope toward drainage points, ensuring any water from fire suppression systems or washdown operations flows through the perforations rather than pooling. For applications in coal handling areas with elevated sulfur content, a painted finish with a two-coat epoxy system (80 microns DFT per SSPC-PS Guide 4.00) is offered that resists sulfuric acid formation from pyrite oxidation.
Offshore mining support vessels and subsea mining equipment platforms utilize Perf-O-Grip grating in marine environments where salt spray and wave splash create corrosive conditions. A 2.5mm thick aluminum 5083-H116 panel, weighing just 8.2 kg/m², is used for access walkways on a polymetallic nodule collector vehicle operating at 4500 meters depth, where the grating must withstand hydrostatic pressure while allowing sediment-laden water to pass through. The material meets DNV-GL rules for marine structures with a minimum tensile strength of 305 MPa and elongation of 12% per ASTM B557. The raised dimple pattern provides grip on surfaces wetted by seawater, with slip resistance tested per ASTM E303 exceeding 0.6 BPN (British Pendulum Number) in wet conditions. Each panel is edge-banded with 5mm radius to prevent cable chafing, and all fasteners are A4-80 stainless steel per ISO 3506-1 for corrosion resistance in chloride-rich environments.
Leading Top Union (领拓互联) brings over 15 years of fabrication experience to every Perf-O-Grip grating panel, with production processes certified to ISO 3834-2 for welding quality and EN 1090-2 EXC3 for structural steel execution. The Suzhou facility operates four automated press lines capable of forming dimple patterns on sheets up to 1500mm wide with a positional accuracy of ±0.3mm per linear meter, verified by laser measurement systems calibrated to ISO 17025 standards. Each production batch undergoes dimensional inspection per ISO 2768-m, with random samples tested for load deflection per ASTM E855. A stock of 500+ tons of raw material is maintained in grades including ASTM A36, EN 10025-2 S355JR, and stainless steel 304L/316L, enabling lead times of 10-15 working days for standard panels and 20-25 days for custom sizes with specialized surface treatments.
The quality assurance program includes third-party verification by SGS or Bureau Veritas upon request, with full traceability from mill test certificates per EN 10204 Type 3.1 to final inspection reports. For mining applications requiring compliance with international safety standards, documentation is provided demonstrating conformity to ASME B30.11 for monorail and underhung cranes, OSHA 1910.23 for walking-working surfaces, and MSHA 30 CFR Part 56 for surface metal and nonmetal mines. The grating is tested for slip resistance using a Brungraber Mark II tester per ASTM F1679, with certified results showing a coefficient of friction of 0.85-0.92 on dry surfaces and 0.72-0.78 on wet surfaces coated with fine iron ore dust. Finite element analysis reports are also offered for non-standard spans, ensuring deflection remains below L/200 under maximum design load as specified in EN 1993-1-1.
Technical support from Leading Top Union includes detailed installation drawings with bolt torque specifications (typically 20-30 Nm for M10 J-bolts per ISO 898-1 Class 8.8), load tables for all thickness and span combinations, and corrosion resistance data for specific mine water chemistries. Engineers can recommend the optimal material and coating combination based on pH levels, chloride concentration, and temperature ranges from -40°C to +80°C, referencing ISO 9223 for atmospheric corrosivity categories. For large-scale mining projects, just-in-time delivery scheduling is offered to match construction timelines, with packaging options including steel crates for containerized shipping or wooden pallets for break-bulk cargo. Each panel is clearly marked with material grade, thickness, and batch number per ISO 9001:2015 traceability requirements, ensuring seamless integration into quality management systems. Contact the technical sales team at info@leadingtopunion.com for a project-specific quotation with load calculations and corrosion resistance data tailored to specific mine site conditions.
| Material | Carbon steel / Galvanized steel / Stainless steel / Aluminum |
| Surface Treatment | Hot-dip galvanized (standard), mill finish, painted |
| Thickness Options | 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm |
| Standard Sizes | 240x1220mm, 300x1220mm, 400x2440mm, 600x2440mm, custom |
| Load Capacity | Up to 500 kg concentrated load (3mm thickness, 600mm span) |
| Hole Pattern | Round raised dimple perforations, 10mm diameter standard |
