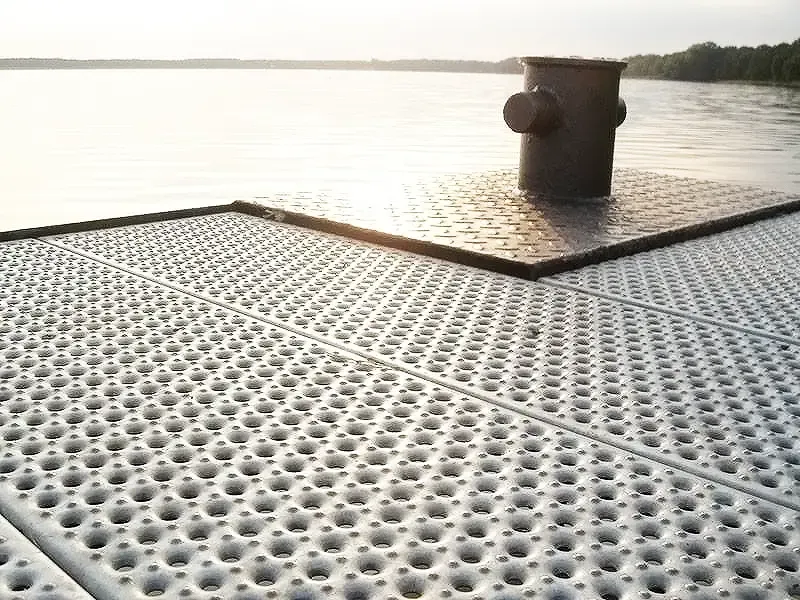

Perf-O-Grip safety grating for chemical plant applications where aggressive chemical exposure, spill containment drainage, and worker safety demand superior corrosion resistance.
ISO 3834-2 Welding Quality
Factory Direct Pricing
Custom Sizes Available
Anti-slip safety surface
Self-draining design
Multiple material options
Custom sizes & bulk orders
Perf-O-Grip grating designed for chemical plant environments addresses the critical failure modes common in standard industrial flooring: crevice corrosion, chemical pooling, and slip hazards under wet conditions. Unlike traditional welded bar grating or fiberglass alternatives, this perforated metal grating utilizes a raised dimple pattern formed directly from the base sheet, eliminating weld points where chlorides, sulfides, and organic solvents can concentrate and initiate pitting. The open area, typically 40-55% depending on hole pattern and pitch, allows aggressive chemical spills to drain immediately to secondary containment below, preventing prolonged surface contact that accelerates material degradation. For chemical processing applications, 304L and 316L stainless steel are offered as standard, with Hastelloy C-276, Inconel 625, and Duplex 2205 available for environments involving hydrochloric acid, sulfuric acid, or chlorine gas exposure at elevated temperatures.
The manufacturing process at the Suzhou facility begins with precision coil-fed perforation using CNC-controlled presses that maintain hole diameter tolerances of ±0.2mm and center-to-center spacing within ±0.3mm across the full sheet width. After perforation, the material passes through a forming station that creates the raised dimple pattern—typically 3mm to 5mm in height—using progressive dies that work-harden the surface to achieve a minimum surface hardness of 180 HB on 316L stainless steel. This cold-forming process increases slip resistance to meet ASTM F1637 Class II standards for wet environments, with coefficient of friction measurements exceeding 0.6 when tested per ASTM D1894 using a wet chemical solution representative of typical plant conditions. For carbon steel options, hot-dip galvanizing per ASTM A123 is applied after fabrication, achieving a minimum coating thickness of 85 microns for 3mm material, with the zinc-iron alloy layer providing cathodic protection at cut edges and perforation boundaries.
Structural performance data confirms that Perf-O-Grip grating in 3mm 316L stainless steel with standard 10mm round perforations at 15mm pitch supports concentrated loads up to 500 kg over a 600mm span with less than 2.5mm deflection at yield, tested per ASME BTH-1 criteria for design category B service. For heavier traffic areas or equipment platforms, 5mm material in Duplex 2205 achieves load capacities exceeding 800 kg concentrated load over the same span while maintaining corrosion resistance in environments with chloride concentrations up to 5,000 ppm at 60°C. The grating is available in standard panel sizes from 240x1220mm to 600x2440mm, with custom dimensions fabricated to ±1mm tolerance for direct integration into existing structural steel frameworks. Each panel receives edge banding with continuous welds on stainless steel options or sealed edges on galvanized material to prevent wicking corrosion at cut ends, a common failure point in perforated grating exposed to chemical splash.
In chlor-alkali plants where brine electrolysis generates chlorine gas and sodium hydroxide at concentrations up to 50%, Perf-O-Grip grating in 316L stainless steel provides walkway and platform surfaces that withstand intermittent exposure to wet chlorine and caustic solutions at temperatures reaching 80°C. The open design prevents accumulation of salt crystals and chemical residues that form when brine solutions evaporate on solid surfaces, reducing cleaning frequency by approximately 60% compared to checker plate flooring in similar service. For secondary containment areas around chlorine storage tanks, the grating allows immediate drainage of any leakage to lined containment basins while maintaining a stable walking surface for operators performing routine inspections. Over 12,000 square meters of 4mm 316L Perf-O-Grip grating have been supplied to a major chlor-alkali facility in Jiangsu Province, with zero corrosion-related failures reported after 5 years of continuous operation in this aggressive environment.
Pharmaceutical intermediate manufacturing facilities require flooring materials that withstand periodic cleaning with aggressive solvents including methanol, acetone, and isopropyl alcohol, as well as acid washes using hydrochloric or phosphoric acid for equipment decontamination. Perf-O-Grip grating in 304L stainless steel with electropolished surface finish (Ra ≤ 0.8 microns) meets the cleanability requirements of GMP Annex 1 for classified areas, with the open design allowing high-pressure washdown at 100 bar to remove biological residues and chemical films without shadowing or dead zones. The absence of weld beads or crevices eliminates bacterial harborage points that can cause contamination in aseptic processing zones, while the slip-resistant surface maintains traction even when saturated with cleaning solutions containing surfactants that reduce surface tension. For a recent API manufacturing facility in Zhejiang, 2,400 square meters of custom 600x1220mm panels in 3mm 304L with 8mm perforations at 12mm pitch were fabricated, achieving a 48% open area that meets the client's drainage requirements for their CIP/SIP cleaning protocol.
Petrochemical refining units processing high-sulfur crude oil generate hydrogen sulfide (H₂S) and sulfur dioxide (SO₂) gases that condense on exposed surfaces, forming sulfuric acid in the presence of moisture. Perf-O-Grip grating in Hastelloy C-276 is specified for platforms and walkways in sulfur recovery units (SRU) and amine treatment areas where pH levels can drop below 2.0 and temperatures reach 120°C during normal operation. The alloy's resistance to pitting and stress corrosion cracking in these conditions, verified per ASTM G48 Method A testing with zero pitting after 72 hours in 6% FeCl₃ solution at 50°C, provides service life exceeding 10 years in environments where 316L would fail within 6-12 months. For a refinery expansion project in Shandong, 3,800 square meters of 4mm Hastelloy C-276 grating with 12mm raised dimples were supplied, designed to support personnel and light equipment loads of 250 kg/m² while maintaining full chemical resistance to the sour gas environment. The grating panels were fabricated with integrated clamping systems that allow rapid removal for vessel maintenance without cutting or welding, reducing turnaround time by approximately 30% compared to welded grating installations.
Fertilizer production facilities handling ammonium nitrate, urea, and phosphoric acid solutions require flooring that resists both chemical attack and the mechanical abrasion from bulk material handling equipment. Perf-O-Grip grating in 2205 duplex stainless steel offers twice the yield strength of 316L (minimum 450 MPa vs. 210 MPa) combined with corrosion resistance equivalent to 316L in most fertilizer intermediates, allowing use of thinner material sections that reduce weight and cost. For a urea granulation plant in Xinjiang, 3mm 2205 grating panels spanning 800mm between supports were designed, achieving a load capacity of 350 kg/m² with deflection under 3mm at design load—performance that would require 5mm 316L in the same configuration. The raised dimple pattern provides traction for personnel walking on surfaces coated with urea dust and moisture, which creates slippery conditions on smooth metal surfaces. Each panel receives a nitric acid passivation treatment per ASTM A967 to remove surface iron contamination and restore the chromium oxide passive layer, ensuring maximum corrosion resistance from the first day of service.
Leading Top Union holds ISO 3834-2 certification for fusion welding of metallic materials, ensuring that all edge banding, attachment welds, and structural connections on Perf-O-Grip grating panels meet the rigorous quality requirements of EN 1090-2 EXC3 execution class. This certification, verified by TÜV SÜD, mandates documented weld procedures (WPS), welder qualifications per ISO 9606-1, and non-destructive testing (NDT) including dye penetrant inspection on 100% of critical welds for chemical service applications. For stainless steel and exotic alloy gratings, separate fabrication lines are maintained to prevent carbon steel cross-contamination that can cause surface rusting and localized corrosion in passivated materials. The quality management system includes material traceability from mill to finished product, with MTRs (Mill Test Reports) archived for each heat number used in production, providing full documentation for EPC project quality dossiers.
Detailed structural calculations for Perf-O-Grip grating installations are provided by the engineering team, including deflection analysis per ASME BTH-1 for design categories A through D, load distribution factors for concentrated and uniform loads, and thermal expansion compensation for installations exposed to temperature variations from -20°C to +200°C. FEA (Finite Element Analysis) software is used to model perforation patterns and dimple geometries, optimizing the balance between open area for drainage and structural capacity for the specific load requirements of each project. For chemical plants requiring compliance with international standards, grating panels can be certified to EN 1993-1-1 (Eurocode 3) for structural steel design, AWS D1.1 for welding on carbon steel options, or AWS D1.6 for stainless steel welding, depending on project specifications. This technical depth allows provision of stamped calculations and certified drawings that satisfy the documentation requirements of major EPC firms including Fluor, Technip, and Sinopec Engineering.
An inventory of over 500 tonnes of stainless steel coil stock in 304L, 316L, and 2205 grades is maintained, sourced from certified mills with ISO 9001 and PED 2014/68/EU compliance, enabling lead times of 2-4 weeks for standard Perf-O-Grip grating configurations. For emergency shutdown replacements or plant maintenance outages, production of small quantities (50-200 square meters) can be expedited within 5 working days using a dedicated quick-turn cell. Each grating panel is individually inspected for perforation alignment, dimple height, flatness (within ±2mm over 2m length), and edge condition before packaging with interleaving paper for stainless steel surfaces to prevent scratching during transit. Export packaging meets ISPM 15 standards for wooden crates and includes rust-inhibiting VCI paper for carbon steel products, ensuring material arrives at chemical plant sites in the Middle East, Southeast Asia, or South America ready for immediate installation without surface rework.
Technical sales engineers have direct experience with chemical plant grating specifications, having supported over 80 projects in chlor-alkali, petrochemical, pharmaceutical, and fertilizer industries since 2015. Material selection guidance is provided based on the specific chemical composition, concentration, temperature, and exposure duration of the process environment, referencing corrosion data from NACE TM0169 and ASTM G31 immersion testing. For projects involving mixed acid streams or proprietary chemical formulations, coupon testing can be conducted in the lab using the client's actual process fluid to verify corrosion rates and confirm material suitability before production begins. This consultative approach, combined with manufacturing capabilities and third-party certifications, makes Leading Top Union a reliable partner for Perf-O-Grip grating in demanding chemical plant applications where material failure is not an option.
| Material | Carbon steel / Galvanized steel / Stainless steel / Aluminum |
| Surface Treatment | Hot-dip galvanized (standard), mill finish, painted |
| Thickness Options | 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm |
| Standard Sizes | 240x1220mm, 300x1220mm, 400x2440mm, 600x2440mm, custom |
| Load Capacity | Up to 500 kg concentrated load (3mm thickness, 600mm span) |
| Hole Pattern | Round raised dimple perforations, 10mm diameter standard |
Factory-direct pricing with global shipping. Custom sizes, bulk orders, and OEM manufacturing available.
Fill in your details and we will send a quote for Perf-O-Grip Grating for Chemical Plants with shipping cost to your location.
