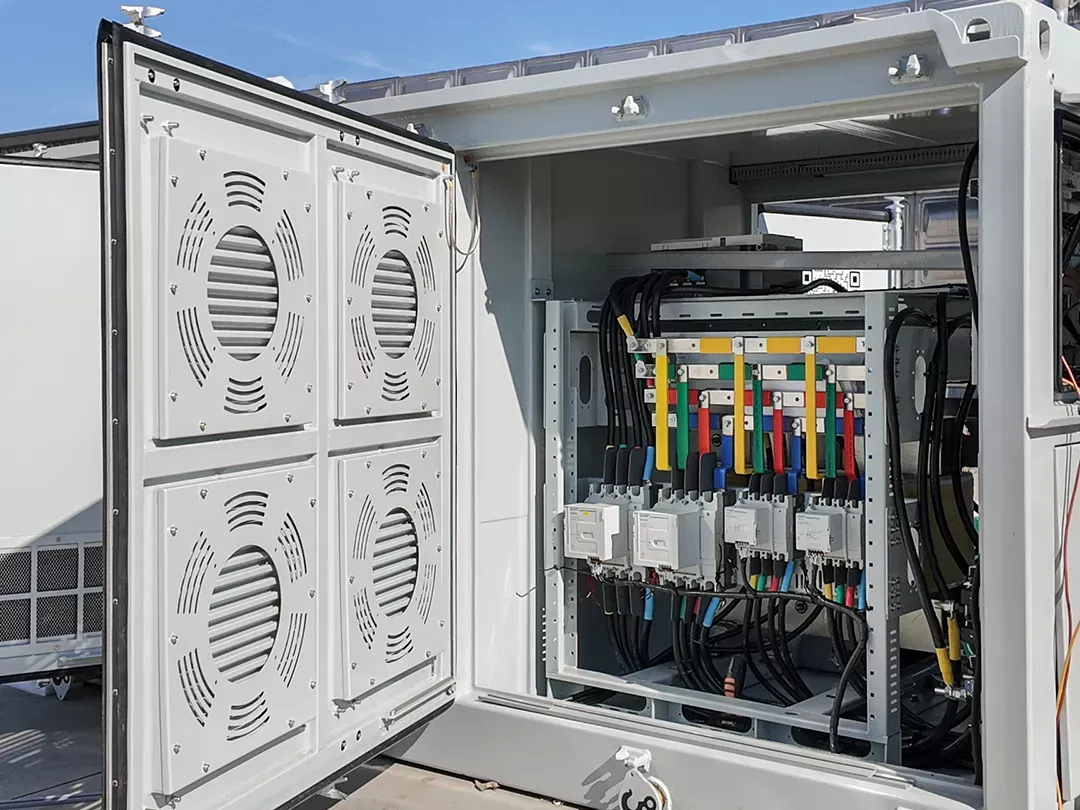

NEMA 4X Rated Enclosures

Product Overview

NEMA 4X rated enclosures from Leading Top Union (领拓互联) are engineered to provide superior protection in the most demanding corrosive environments. Constructed from 316L stainless steel (1.4404) or fiberglass-reinforced polyester (FRP), these enclosures are designed to withstand continuous exposure to salt spray, chemical washdowns, and UV radiation. 316L stainless steel models feature a low carbon content (max 0.03%) to prevent sensitization during welding, ensuring long-term corrosion resistance in chloride-rich environments such as offshore platforms and chemical processing plants. Each enclosure is fabricated with a minimum wall thickness of 2.0 mm for 316L SS and 3.0 mm for FRP, providing structural integrity for internal components weighing up to 150 kg when properly mounted.

NEMA 4X Certification and Testing

The NEMA 4X rating, verified per NEMA 250 and equivalent to IP66 with added corrosion resistance, guarantees protection against hose-directed water, dust ingress, and ice formation. A rigorous 1000-hour salt spray test per ASTM B117 is performed on all enclosures, with no visible corrosion or pitting exceeding 0.1 mm depth. For outdoor installations, the UV resistance is validated through 10-year accelerated weathering per ASTM G154, ensuring the FRP material retains at least 85% of its original tensile strength after prolonged solar exposure. Operating temperature range spans -40°C to +60°C, accommodating installations from Arctic oil fields to Middle Eastern petrochemical facilities. All units are certified to UL 508A and CSA C22.2 No. 94, with optional ATEX/IECEx certification for hazardous locations.

Customization and Configuration Options

Customization options include integrated cooling systems (thermoelectric or vortex coolers) capable of maintaining internal temperatures within ±2°C of setpoint, even under 500 W/m² solar load. Fire suppression modules using clean agent (Novec 1230 or FK-5-1-12) can be factory-installed, with discharge times under 10 seconds for enclosures up to 2.0 m³. Cable entry plates are available in aluminum or stainless steel, with up to 48 pre-drilled entries per plate. Standard enclosure sizes range from 300 mm x 300 mm x 200 mm to 1800 mm x 1200 mm x 600 mm, with custom dimensions fabricated to ±1.0 mm tolerance. Each unit includes a continuous silicone gasket with a compression ratio of 30-40%, tested for 10,000 cycles without leakage.

Welding and Quality Assurance Standards

Welding procedures for stainless steel enclosures follow AWS D1.6 and EN 1090-2 EXC3 standards, with all joints ground smooth to a surface finish of Ra ≤ 0.8 µm. ISO 3834-2 certification ensures full traceability of weld consumables and operator qualifications. For FRP enclosures, a hand lay-up process is used with a resin-to-glass ratio of 60:40, achieving a flexural strength of 200 MPa per ASTM D790. All enclosures are delivered with a 5-year warranty against material defects and corrosion, backed by a quality management system certified to ISO 9001:2015. Each unit is individually tested for ingress protection using a calibrated water spray nozzle at 65 L/min for 5 minutes, per IEC 60529.

Applications & Industries

In the oil and gas sector, NEMA 4X enclosures are deployed on offshore platforms in the North Sea and Gulf of Mexico, where salt spray concentrations exceed 10 mg/m³. A typical installation involves housing RTU (Remote Terminal Units) and flow computer systems for subsea wellhead control, operating continuously at 85% relative humidity and 35°C ambient temperature. 316L SS enclosures have demonstrated zero corrosion failures over 8 years of service in such conditions, based on field data from a major operator in the Norwegian Continental Shelf. The enclosures are designed to accommodate explosion-proof components per ATEX Directive 2014/34/EU, with optional purge systems for Zone 1 and Zone 2 areas.

Offshore Wind Energy Installations

Offshore wind energy installations require enclosures that can withstand 10 m/s wind-driven rain and salt fog at altitudes up to 100 meters above sea level. FRP enclosures, weighing 40% less than equivalent stainless steel units, are used in wind turbine nacelles for pitch control systems and yaw drives. These enclosures have passed 5000 hours of combined salt spray and UV exposure per ISO 9227 and ASTM G155, with no degradation in dielectric strength (maintained at >20 kV/mm). For offshore substations, custom enclosures up to 2000 mm x 1500 mm x 800 mm are supplied for medium-voltage switchgear, with integrated busbar supports rated for 630 A continuous current at 50°C ambient.

Chemical Processing and Corrosive Environments

Chemical processing plants, particularly those handling chlorine, sulfuric acid, and caustic soda, demand enclosures with exceptional chemical resistance. 316L SS enclosures are tested per ASTM G48 Method A for pitting resistance, showing no attack after 72 hours in 6% FeCl3 solution at 22°C. For environments with pH below 2, optional PTFE lining with a thickness of 1.5 mm is offered, bonded to the enclosure interior via a proprietary adhesive system tested to 10 N/mm² peel strength. These enclosures house pH sensors, flow meters, and control valves in chlor-alkali plants, where ambient temperatures reach 55°C and chemical vapors are present continuously.

Food and Beverage Washdown Environments

In the food and beverage industry, NEMA 4X enclosures are essential for washdown environments using high-pressure hot water (80°C at 100 bar) and foaming sanitizers. 316L SS enclosures with a surface finish of Ra ≤ 0.4 µm prevent bacterial adhesion, meeting EHEDG guidelines for hygienic design. A typical installation in a dairy processing facility houses PLCs and motor drives for pasteurization lines, operating 24/7 at 90% humidity. The enclosures include sloped roofs (15° minimum) and drip-proof hinges to prevent water pooling, with all fasteners made from 316L SS or titanium. Third-party certification to NSF/ANSI 169 is provided for special-purpose enclosures used in direct food contact areas.

Mining and Heavy Industry Applications

Mining operations in Chile and Australia use NEMA 4X enclosures for conveyor control systems in copper and iron ore processing, where abrasive dust and acidic mine water (pH 3-5) are prevalent. The enclosures are fitted with positive pressure ventilation systems using HEPA filters (MERV 16) to maintain internal cleanliness, with a flow rate of 50 CFM for a 600 mm x 600 mm x 400 mm enclosure. Vibration testing per IEC 60068-2-6 confirms operation at 5-500 Hz at 2 g acceleration, critical for installations near crushers and mills. Over 2000 units have been deployed in the Pilbara region since 2018, with a mean time between failures (MTBF) exceeding 50,000 hours.

Why Choose Leading Top Union for NEMA 4X Rated Enclosures

Leading Top Union (领拓互联) combines ISO 3834-2 certified welding with EN 1090-2 EXC3 execution class, ensuring that every NEMA 4X enclosure meets the highest structural and quality standards for load-bearing applications. Welding procedures are qualified to AWS D1.1 and D1.6, with all welders certified to EN 287-1. This allows fabrication of enclosures with load capacities up to 500 kg when wall-mounted using a heavy-duty bracket system, tested to 4x safety factor per ASME BTH-1. For offshore projects, DNV-GL type approval is provided for enclosure designs used in dynamic positioning systems and thruster controls, reducing certification lead time by up to 6 weeks.

Manufacturing Capabilities and Capacity

The manufacturing facility in Suzhou operates a dedicated NEMA 4X production line with a capacity of 500 units per month, supported by a 2000 m² warehouse for raw material storage. An inventory of 316L SS sheets in thicknesses from 1.5 mm to 6.0 mm is maintained, sourced from certified mills with EN 10204 3.1 material certificates. Laser cutting tolerances are held to ±0.2 mm, with CNC bending accuracy of ±0.5° per bend. Each enclosure undergoes a 100% dimensional inspection using CMM (Coordinate Measuring Machine) with a resolution of 0.01 mm, ensuring compliance with specified tolerances. The average on-time delivery rate for custom enclosures is 96.5% over the past 24 months.

Engineering Support and Simulation Services

A comprehensive engineering support package is offered, including 3D CAD modeling (SolidWorks, STEP, IGES formats) and finite element analysis (FEA) for structural and thermal performance. Wind loads up to 200 km/h per ASCE 7-16 and seismic loads per IBC 2018 can be simulated, providing deflection reports with a maximum allowable deflection of L/200. For thermal management, CFD analysis is performed to optimize cooling system placement, achieving a temperature uniformity of ±3°C across the enclosure interior. This service is included for orders over 50 units, with a typical turnaround of 5 business days for initial design proposals.

Quality Assurance and Warranty Programs

The quality assurance program includes a 24-hour salt spray test on every production batch per ASTM B117, with photographic documentation and a certificate of compliance. For critical applications, optional 1000-hour salt spray testing is available on sample coupons from the same material lot, with results traceable to the specific enclosure serial number. All enclosures are supplied with a 5-year corrosion warranty, covering perforation or structural failure due to atmospheric corrosion. A 10-year extended warranty option is also provided for FRP enclosures, backed by UV resistance data from 15,000 hours of accelerated testing. After-sales support includes a 24/7 technical hotline staffed by engineers with an average of 12 years of enclosure design experience.

Global Logistics and Client Partnerships

Global logistics capabilities ensure delivery to any port worldwide within 4-6 weeks for standard sizes and 8-10 weeks for custom designs. Partnerships with freight forwarders specializing in project cargo offer door-to-door delivery with customs clearance support for 50+ countries. Each enclosure is packed in a wooden crate with foam inserts, tested to ISTA 3A standards for transit vibration and drop resistance. For urgent projects, a stock of 200 standard-size 316L SS enclosures (600 mm x 600 mm x 400 mm) is maintained for immediate shipment. The client list includes Tier 1 EPC contractors in oil and gas, offshore wind, and mining, with repeat orders exceeding 80% annually, reflecting consistent quality and reliability in NEMA 4X enclosure supply.
