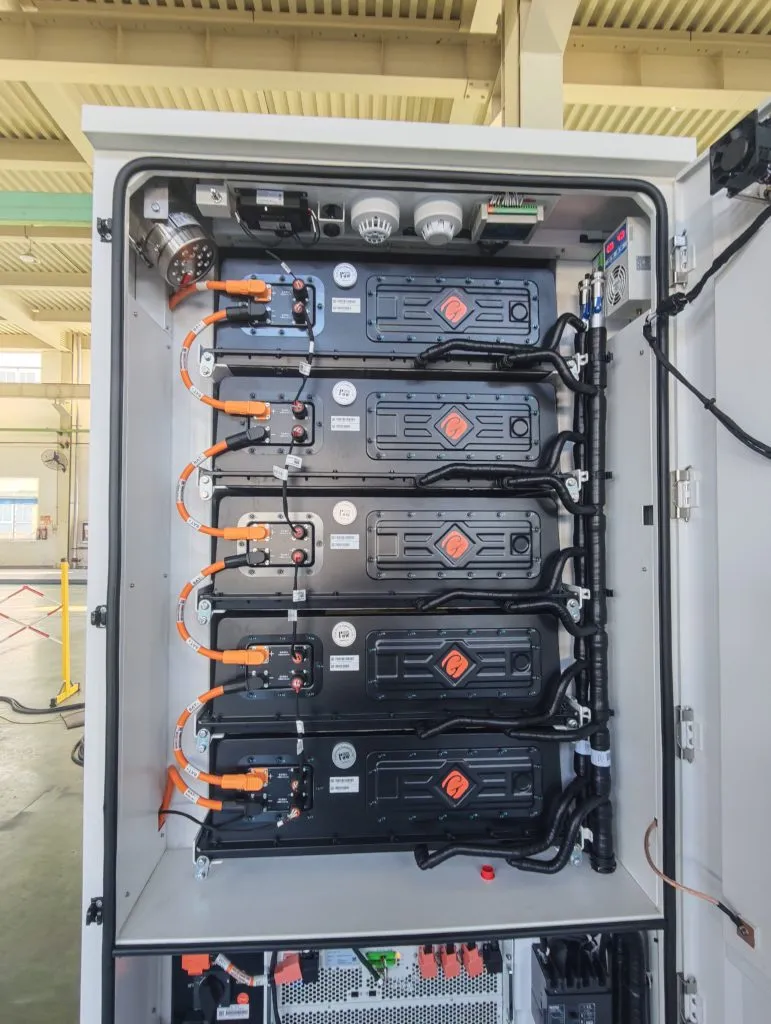

IP55 and IP65 rated BESS enclosures providing complete protection against dust ingress and water jets. Our enclosures maintain protection ratings throughout their service life with proper gasket systems, cable glands, and ventilation design.
IP55/IP65 Rated
UL 9540A Certified
-40°C to +55°C
1-5 MWh Capacity
The IP55 and IP65 protection ratings defined under IEC 60529 represent two distinct levels of enclosure sealing critical for electrical and mechanical equipment operating in harsh industrial environments. IP55 certification guarantees protection against dust ingress in quantities that could interfere with normal operation, combined with resistance to low-pressure water jets from any direction at 12.5 liters per minute for 3 minutes. IP65 elevates this to complete dust-tight sealing (no dust ingress permitted) and water jet resistance at 100 liters per minute from a 6.3mm nozzle at 3 meters distance. For procurement engineers evaluating enclosures for offshore wind turbine control cabinets or petrochemical analyzer shelters, the choice between IP55 and IP65 directly impacts maintenance intervals and equipment longevity in sandy, humid, or wash-down conditions.
Leading Top Union fabricates IP55 and IP65 enclosures from structural steel plate ranging from 1.5mm to 6.0mm thickness, with hot-dip galvanized or stainless steel 316L options for corrosive environments. All enclosures undergo third-party verification at accredited laboratories per IEC 60529, including the 8-hour dust chamber test for IP5X and vacuum test for IP6X, followed by the IPX5 and IPX6 water jet tests using calibrated nozzles at specified flow rates and pressures. Marine-grade EPDM gaskets, tested to ASTM D2000 M2SA 710 A25 B34 C12 F19, maintain compression set below 20% after 22 hours at 100°C, ensuring sealing integrity across a temperature range of -40°C to +120°C. For high-temperature applications such as gas turbine enclosures, silicone gaskets rated to +230°C are available, with full material traceability to EN 10204 3.1 certificates.
Thermal management within sealed enclosures presents a significant engineering challenge, as internal heat generation from transformers, drives, or power electronics can exceed 50°C ambient rise without proper ventilation. Leading Top Union integrates IP-rated filtered ventilation systems using aluminum or stainless steel louver panels with stainless steel mesh filters tested to IP55 or IP65 per IEC 60529, achieving airflow rates from 100 m³/h to 2,500 m³/h depending on enclosure volume and heat load. For applications requiring zero air exchange, such as offshore drilling control panels exposed to salt spray, sealed HVAC units with IP65-rated housings and closed-loop cooling capacities from 1.5 kW to 15 kW are supplied. All cable penetrations are sealed using IP68-rated brass or stainless steel cable glands from M20 to M63, tested to 20 bar pressure for 2 hours, with EMC shielding options for sensitive instrumentation in power generation substations.
Material selection for IP55 and IP65 enclosures extends beyond gaskets to include all fasteners, hinges, and door hardware. Leading Top Union uses stainless steel 304 or 316L continuous hinges rated for 50,000 cycles, with captive stainless steel quarter-turn latches or multi-point locking systems for larger enclosures exceeding 1800mm height. All welds are performed by AWS D1.1-certified welders using GMAW or GTAW processes, with full penetration welds on corner joints and continuous fillet welds on door frames to eliminate moisture traps. Surface preparation follows ISO 8501-1 Sa 2.5 standards with 75-micron minimum profile, followed by epoxy primer and polyurethane topcoat at 120-micron total DFT, tested for adhesion per ASTM D3359 and salt spray resistance per ASTM B117 exceeding 1,000 hours without blistering or creepage.
In the offshore wind energy sector, IP65 enclosures are mandatory for turbine nacelle control cabinets, pitch control systems, and yaw drive controllers exposed to salt-laden air, rain, and condensation at heights exceeding 100 meters. Leading Top Union has supplied IP65 enclosures for offshore wind farms in the North Sea and East China Sea, with enclosures measuring up to 2400mm x 1200mm x 800mm housing SCADA systems and power converters rated at 690VAC. These enclosures incorporate silicone gaskets for -40°C to +120°C operation, IP68 cable glands for all power and signal cables, and filtered ventilation systems sized to maintain internal temperature below 45°C with ambient temperatures reaching 40°C and solar radiation loads of 1,000 W/m². Third-party testing per DNV-GL-ST-0378 confirms compliance with offshore environmental conditions including vibration up to 5g and shock loads of 15g.
Oil and gas refineries and petrochemical plants require IP55 or IP65 enclosures for distributed control system (DCS) field junction boxes, motor control centers (MCCs), and analyzer shelters located in Zone 1 and Zone 2 hazardous areas. For a recent Middle East refinery expansion, Leading Top Union delivered 340 IP65 enclosures for field-mounted temperature transmitters and pressure transducers, each enclosure fabricated from 316L stainless steel with 2.0mm wall thickness and fitted with M25 IP68 cable glands for armored instrumentation cables. The enclosures were designed to withstand ambient temperatures of 55°C with solar heat gain, using IP55 filtered fans with 200 m³/h airflow to maintain internal temperature below 65°C. All enclosures were supplied with ATEX/IECEx certification for gas groups IIA, IIB, and IIC, with bonding connections tested to less than 0.1 ohm resistance per IEC 60079-14.
Mining operations, both open-pit and underground, demand IP55 enclosures for conveyor control stations, crusher lubrication panels, and ventilation fan starters operating in dust-laden atmospheres with relative humidity exceeding 95%. Leading Top Union has manufactured IP55 enclosures for copper mines in Chile and coal mines in Australia, using 3.0mm mild steel with hot-dip galvanizing to 85 microns per ASTM A123 and EPDM gaskets resistant to hydrocarbon contamination. These enclosures incorporate IP55-rated filtered ventilation with washable polyester filters rated for 10,000 hours service life, and M32 IP68 cable glands for trailing cables up to 95mm² cross-section. Internal busbars rated at 630A continuous current are supported on glass-reinforced polyester insulators with 25mm creepage distance per IEC 61439-1, and all doors are fitted with stainless steel padlockable handles for lockout/tagout compliance.
Power generation facilities, including combined cycle gas turbine plants and coal-fired units, utilize IP55 enclosures for turbine supervisory instrumentation, generator excitation panels, and balance-of-plant control systems. For a 2x660MW supercritical coal plant in India, Leading Top Union supplied 180 IP55 enclosures for sootblower control panels and ash handling system junction boxes, each enclosure measuring 800mm x 600mm x 300mm with 2.0mm steel and powder-coated finish to RAL 7035. The enclosures feature IP55 filtered fans with 150 m³/h capacity and thermostatically controlled heaters rated at 100W to prevent condensation during plant shutdowns. All enclosures were tested for vibration resistance per IEC 60068-2-6 at 5g from 10Hz to 150Hz, and supplied with full documentation including material certificates per EN 10204 3.1, weld procedures per AWS D1.1, and IP test reports from TÜV-accredited laboratories.
Leading Top Union operates a dedicated IP testing facility at our Suzhou manufacturing base, equipped with a dust chamber meeting IEC 60529 Clause 13.4 specifications for talcum powder circulation at 2 kg/m³ concentration, and a water jet test rig with calibrated nozzles for IPX5 (12.5 L/min at 30 kPa) and IPX6 (100 L/min at 100 kPa) testing. Every enclosure produced for IP55 or IP65 certification undergoes 100% testing on our production line, with random samples sent to SGS or TÜV Rheinland for third-party verification. This dual-testing protocol ensures that our enclosures consistently meet or exceed the rated protection levels, with documented test reports included in each shipment. For EPC contractors requiring project-specific certification, we can arrange witnessed testing at our facility or coordinate with your nominated third-party inspection agency.
The manufacturing process for IP55 and IP65 enclosures is certified under ISO 3834-2 for fusion welding of metallic materials, ensuring consistent weld quality across all production runs. EN 1090-2 EXC3 certification for structural steel fabrication is maintained, which is particularly relevant for large enclosures exceeding 2000mm in any dimension that require structural integrity under wind loads or seismic events. All gasket installation is performed using automated dispensing equipment for adhesive application, with compression controlled to ±0.2mm tolerance to ensure uniform sealing pressure across the entire door perimeter. The quality management system, certified to ISO 9001:2015, includes incoming material inspection for gasket hardness per ASTM D2240, cable gland thread gauging per ISO 228/1, and enclosure flatness verification to 1mm per meter per ISO 2768-mK.
For global EPC firms managing multiple projects across different regions, Leading Top Union offers design flexibility to accommodate local standards while maintaining core IP55/IP65 performance. Customer-specified cable gland types (metric, PG, or NPT threads), door interlock switches, viewing windows with IP65-rated glass, and custom cutouts for panel-mounted components can be integrated. The engineering team provides 3D models in STEP or IGS format for integration into plant design software, along with thermal simulation reports using computational fluid dynamics (CFD) to validate ventilation sizing for specific heat loads. With typical lead times of 4-6 weeks for standard enclosures and 8-12 weeks for custom designs, just-in-time delivery schedules for large-scale projects are supported, including containerized shipments to ports worldwide.
The 20-year service life guarantee on marine-grade gaskets is backed by accelerated aging tests per ASTM D573, with samples tested at 100°C for 70 hours to simulate 20 years of thermal cycling, and ozone resistance per ASTM D1149 at 50 pphm for 70 hours. This data, combined with a field failure rate of less than 0.2% over 15 years of production, provides procurement engineers with the confidence to specify Leading Top Union enclosures for critical applications where downtime costs exceed $10,000 per hour. A standard 5-year warranty is offered on all IP55 and IP65 enclosures, with extended warranty options available for offshore and corrosive environments. Contact our technical sales team at info@leadingtopunion.com with your enclosure dimensions, heat load calculations, and environmental conditions for a detailed proposal including thermal analysis, material selection recommendations, and third-party testing documentation.
| Parameter | Specification |
|---|---|
| IP55 | Dust-protected + water jets (any direction) |
| IP65 | Dust-tight + water jets (any direction) |
| Gasket Material | EPDM (standard), silicone (high-temp) |
| Cable Glands | IP68 rated, M20-M63 |
| Ventilation | IP-rated filtered fans or sealed HVAC |
| Testing | IEC 60529, third-party verified |
