Grip Strut Stair Treads & Nosing

Product Overview

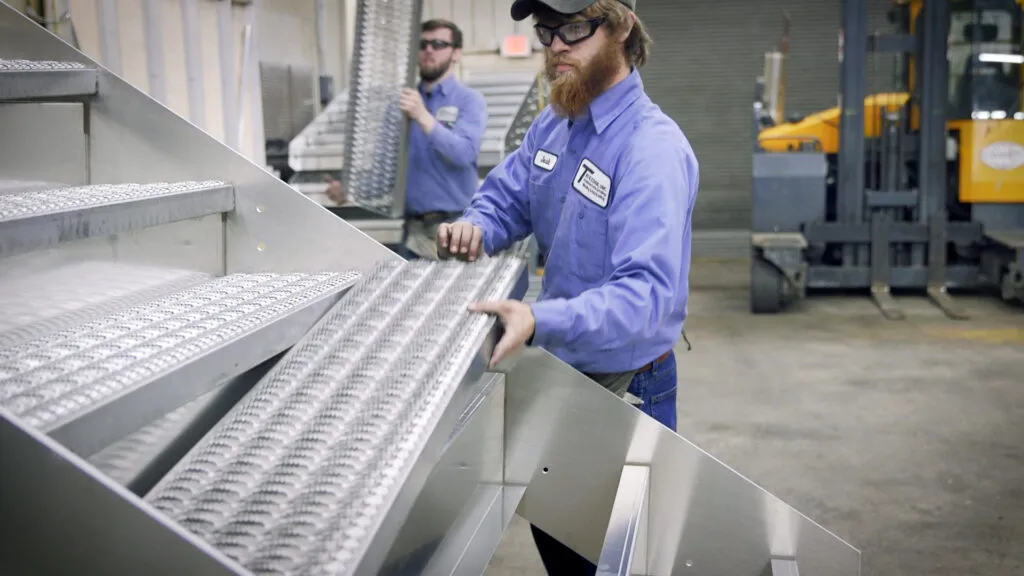

Grip Strut stair treads with integrated nosing from Leading Top Union are engineered for industrial environments where slip resistance and structural integrity are non-negotiable. The raised traction pattern, formed through a precision die-pressing process, generates a coefficient of friction consistently exceeding 0.8 when tested per ASTM F1679, surpassing the OSHA minimum of 0.5 for walking-working surfaces. This is achieved without relying on abrasive coatings or inserts that degrade over time. The diamond-shaped punched openings, measuring 46mm x 16mm, provide self-cleaning drainage that prevents water, oil, or debris accumulation—critical for outdoor platforms in petrochemical refineries or offshore wind turbine access ways. Each tread is fabricated from carbon steel (ASTM A36 or equivalent), galvanized steel (ASTM A653), stainless steel (304L or 316L), or marine-grade aluminum (5083-H116), with thickness options from 2.0mm to 5.0mm to match specific load requirements.

Integrated Nosing Design Advantages

The integrated nosing design eliminates the need for separate nosing strips, reducing installation labor by up to 40% compared to traditional tread-and-nosing assemblies. This one-piece construction also removes the crevice corrosion risk inherent in bolted or welded nosing joints, particularly in coastal or chemical processing environments. The bent front edge, formed to a 90-degree angle with a 10mm radius, provides visible step definition and meets the toe protection requirements of EN 1090-2 EXC3 for industrial stairs. Standard tread widths of 240mm, 300mm, 400mm, and 600mm accommodate common stringer spacings of 600mm to 1200mm center-to-center, while custom widths up to 1200mm are available for non-standard layouts. Lengths are offered in 1220mm and 2440mm as standard, with custom lengths up to 6000mm for continuous stair runs in mining or power generation facilities.

Load Capacity and Structural Performance

Load capacity is verified through finite element analysis (FEA) and physical testing per EN 1991-1-1 (Eurocode 1) for imposed loads on structures. A 3.0mm thick carbon steel tread spanning 600mm supports a concentrated load of 500 kg with less than 2mm permanent deformation, equivalent to a 5 kN point load. For heavier-duty applications, the 5.0mm thickness option handles 800 kg concentrated loads over the same span, suitable for maintenance platforms in shipbuilding dry docks or heavy equipment access in mining operations. The open area ratio of approximately 40% from the diamond pattern reduces wind uplift forces on outdoor stairs—a key consideration for offshore wind turbine towers and elevated petrochemical structures. Surface treatments include hot-dip galvanizing per ASTM A123 (minimum 85 microns coating thickness), mill finish for stainless steel, or industrial-grade powder coating with 60-80 micron DFT for color-coded safety marking.

Applications & Industries

Oil and Gas Refinery Applications

In oil and gas refineries, grip strut stair treads with integrated nosing are specified for access platforms around distillation columns and heat exchangers where hydrocarbon spills create persistent slip hazards. The self-draining openings prevent pooling of condensate or wash-down water, maintaining slip resistance even during steam cleaning cycles. For LNG terminals operating in cryogenic conditions down to -162°C, the 316L stainless steel variant retains impact toughness per ASTM A240, while the diamond pattern provides traction on frost-prone surfaces. A typical installation at a 200,000 bpd refinery might include 400mm wide treads on 30-degree inclined stairs, supporting 4.5 kN/m² live loads as per API 2A-WSD for offshore structures. The integrated nosing eliminates the failure point where separate nosings often detach due to thermal cycling between -20°C and 80°C in Middle Eastern desert environments.

Offshore Wind Energy Performance

Offshore wind energy applications demand materials that withstand salt spray, UV exposure, and dynamic loading from turbine vibrations. The 5083-H116 aluminum grip strut treads, with a yield strength of 215 MPa and corrosion resistance per DNV-GL-OS-E101, are used in transition piece ladders and nacelle access platforms. The 46x16mm diamond openings reduce weight by 35% compared to solid plate treads, critical for minimizing topside mass on floating wind foundations. Load testing per IEC 61400-2 confirms the 4.0mm aluminum treads sustain 350 kg concentrated loads over 800mm spans with less than 1mm deflection, adequate for technician access during maintenance intervals. The hot-dip galvanized carbon steel option, with a 20-year service life in C5 corrosion zones per ISO 9223, is preferred for fixed-bottom monopile stairways in the North Sea.

Mining and Abrasion Resistance

Mining operations, both open-pit and underground, require stair treads that resist abrasion from ore dust and mud while providing reliable traction on steep inclines. The 5.0mm thick carbon steel treads, hot-dip galvanized per ASTM A123 with a 100-micron minimum coating, are installed on 45-degree escape ramps in underground copper mines where relative humidity exceeds 90%. The raised pattern maintains a coefficient of friction above 0.7 even when coated with fine rock dust, verified through testing per DIN 51130 for slip resistance on inclined surfaces. For processing plants handling abrasive materials like iron ore pellets, the treads are supplied with a hardened surface layer achieving 400 HB minimum hardness, extending service life by 3x compared to standard galvanized treads. The integrated nosing prevents the common failure mode of bent or detached nosings under repeated impact from heavy boots and equipment.

Power Generation Facility Specifications

Power generation facilities, including coal-fired, gas turbine, and nuclear plants, use grip strut stair treads for boiler access platforms, turbine deck stairs, and cooling tower walkways. In combined-cycle gas turbine plants, the treads must withstand exhaust heat up to 120°C near HRSG structures without losing structural integrity—the 3.0mm stainless steel 304L option maintains yield strength above 205 MPa at 100°C per ASME BPVC Section II. For nuclear applications requiring seismic qualification per IEEE 344, the treads are tested for dynamic loads up to 0.5g acceleration with no fastener loosening or permanent deformation. The open diamond pattern also reduces acoustic reflection in turbine halls, lowering ambient noise levels by 2-3 dB compared to solid treads, contributing to OSHA hearing conservation compliance. Custom widths of 500mm are often specified for main egress stairs in 500 MW plants to accommodate emergency evacuation flows of 200 persons per minute.

Why Choose Leading Top Union for Grip Strut Stair Treads & Nosing

ISO 3834-2 Certified Production Facility

Leading Top Union operates a 12,000-square-meter production facility in Suzhou with ISO 3834-2 certification for welding quality management, ensuring every tread weld meets the stringent requirements of EN 1090-2 EXC3 for structural steel components. This certification mandates documented welding procedures (WPS), welder qualifications per ISO 9606-1, and non-destructive testing (NDT) including visual inspection per ISO 17637 and magnetic particle testing per ISO 17638 on 100% of load-bearing welds. For projects requiring third-party verification, material test certificates per EN 10204 Type 3.1 or 3.2 are provided, traceable to mill sources. In-house tensile testing machine (100 kN capacity) and salt spray chamber (per ASTM B117) allow verification of mechanical properties and corrosion resistance on every production batch, not just random samples.

Precision Manufacturing Tolerances

Grip strut stair treads are manufactured using a 500-ton hydraulic press with CNC-controlled dies, achieving dimensional tolerances of ±1.0mm on width and ±2.0mm on length per ISO 2768-m. The diamond hole pattern is punched with a positional accuracy of ±0.5mm, ensuring consistent drainage and slip resistance across the entire tread surface. For the integrated nosing, the front edge is bent to a 90° ± 1° angle with a 10mm ± 0.5mm radius, providing uniform toe protection and step definition. All carbon steel treads are hot-dip galvanized in a partner facility with a 15-meter-long kettle, achieving coating thickness of 85-120 microns per ASTM A123, verified by magnetic thickness gauge on five points per tread. For stainless steel and aluminum, electropolishing or anodizing is offered to enhance corrosion resistance in aggressive environments like offshore platforms or chemical plants.

Global Supply and Quality Assurance

Global EPC firms including those in oil and gas, offshore wind, and mining sectors are supplied, with export experience to 30+ countries. The quality management system is certified to ISO 9001:2015, and AWS D1.1 certification is maintained for structural welding of carbon and stainless steel. For each order, a detailed inspection plan (ITP) is provided covering raw material verification, dimensional inspection, weld quality checks, and surface treatment validation. Lead times for standard sizes (240x1220mm, 300x1220mm, 400x2440mm, 600x2440mm) are 15-20 working days from order confirmation, with expedited production available for urgent projects. Custom sizes and materials, including duplex stainless steel (2205) or aluminum 6061-T6, are quoted within 24 hours with production lead times of 25-35 working days. Bolt-on or weld-on installation options are offered, with pre-drilled holes for M12 or M16 bolts per customer specifications.

Engineering Support and Ordering Information

Technical support is provided by the engineering team, who can perform structural calculations per EN 1991-1-1 or ASCE 7-16 for live loads, wind loads, and seismic loads specific to your project location. 3D CAD models (STEP or IGES format) are also offered for integration into structural design software, reducing engineering time by up to 20%. For large-scale projects exceeding 1,000 treads, batch traceability with unique serial numbers per tread is provided, linked to material certificates and NDT reports. Pricing for a standard 3.0mm carbon steel tread (400x2440mm) with hot-dip galvanizing and integrated nosing starts at $45.00 per unit FOB Shanghai, with volume discounts available for orders over 500 units. Contact the sales team at sales@leadingtopunion.com for a technical datasheet and quotation tailored to your stair stringer spacing and load requirements.
