Hot-Dip Galvanized Grip Strut Grating

Product Overview

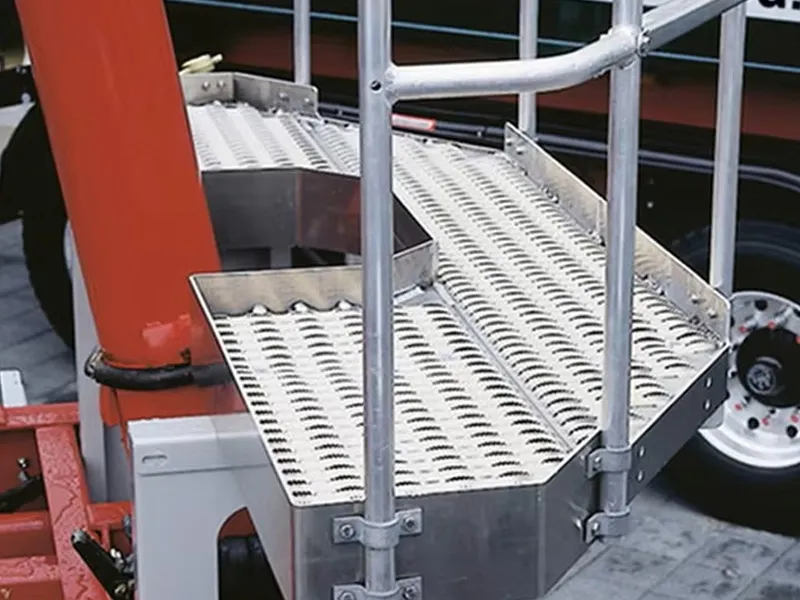

Hot-dip galvanized grip strut grating from Leading Top Union (领拓互联) is a high-strength, slip-resistant steel grating engineered for demanding industrial environments where corrosion resistance and worker safety are non-negotiable. Manufactured from low-carbon steel grades Q235B or ASTM A36, each panel undergoes a complete hot-dip galvanizing process per ASTM A123, producing a uniform zinc-iron alloy coating that bonds metallurgically to the base steel. This coating thickness typically ranges from 85 to 150 microns depending on material thickness, providing a sacrificial barrier that protects against atmospheric corrosion in C2 to C5 environments as defined by ISO 9223. The diamond-shaped punched openings, measuring 46x16mm standard, create a serrated surface with raised edges that deliver exceptional slip resistance in both wet and oily conditions, making it suitable for applications requiring compliance with OSHA 1910.23 walking-working surface standards.

Structural Integrity and Load Performance

The structural integrity of this grating is validated through rigorous load testing, with a 3.0mm thick panel spanning 600mm capable of supporting a concentrated load of 500 kg without permanent deformation. Thickness options range from 2.0mm to 5.0mm, with standard panel sizes including 240x1220mm, 300x1220mm, and 400x2440mm, though custom dimensions are available to meet specific project requirements. The hot-dip galvanized coating provides continuous protection from -40°C to +200°C, ensuring performance in arctic offshore platforms and high-temperature petrochemical facilities alike. Unlike painted or powder-coated alternatives, the zinc layer self-heals minor scratches and cut edges through cathodic protection, eliminating the need for touch-up painting and reducing lifecycle maintenance costs by up to 60% over a 30-year service life as documented in industry studies by the American Galvanizers Association.

Precision Fabrication and Design Optimization

Each panel is fabricated with precision tolerances of ±1.5mm in length and width, and ±0.5mm in flatness across the diagonal, ensuring consistent fitment in structural openings. The diamond pattern design optimizes the strength-to-weight ratio, allowing for spans up to 1200mm in 5.0mm thickness while maintaining deflection under L/200 per AISC design guidelines. The open area of approximately 60% facilitates efficient drainage of liquids and debris, reducing slip hazards and preventing ice accumulation in outdoor installations. For projects requiring additional corrosion resistance in marine environments, Leading Top Union can apply a supplementary zinc-rich primer or duplex coating system per ISO 12944, extending service life beyond 50 years in C5-M (marine) environments. All production is traceable through heat numbers and coating thickness reports, supporting quality documentation requirements for EPC contractors.

Applications & Industries

In the oil and gas sector, hot-dip galvanized grip strut grating is specified for offshore platform walkways, helicopter deck access paths, and flare stack platforms where salt spray and hydrocarbon exposure demand robust corrosion protection. A typical offshore platform in the North Sea may require 8,000 to 12,000 square meters of grating per installation, with panels subjected to wave splash zones and temperatures ranging from -20°C to 80°C. The galvanized coating meets NORSOK M-001 standards for material selection in marine environments, and the slip-resistant surface reduces incident rates in areas where hydraulic fluids or seawater create slick conditions. EPC firms such as McDermott and Saipem routinely specify this grating for topside modules, where its 500 kg concentrated load capacity accommodates personnel and light equipment while maintaining compliance with DNV-OS-E101 for offshore structures.

Mining Industry Heavy-Duty Applications

Mining operations rely on this grating for heavy-duty applications including conveyor walkways, crusher platforms, and screening plant access routes. In Australian iron ore mines, panels with 5.0mm thickness and 400x2440mm dimensions are installed over conveyor galleries spanning 900mm, supporting static loads from maintenance personnel and dynamic loads from falling ore debris. The hot-dip galvanized coating withstands abrasive wear from mineral dust and acidic mine water with pH levels as low as 3.5, providing 25 to 35 years of service in underground environments per AS/NZS 4680 standards. The diamond pattern allows fine particles to pass through, preventing material buildup that could create fire hazards in coal processing facilities. Leading Top Union supplies grating certified to AS 1657 for fixed platforms and walkways, ensuring compliance with Australian mining safety regulations.

Power Generation and Thermal Cycling Resistance

Power generation facilities, including coal-fired plants, natural gas combined cycle units, and solar thermal installations, use this grating for turbine deck platforms, cooling tower access, and boiler inspection walkways. In a typical 500 MW coal plant, approximately 5,000 square meters of grating is installed across multiple elevations, with panels exposed to temperatures up to 200°C near steam lines and flue gas ducts. The galvanized coating maintains structural integrity under thermal cycling, with no delamination or embrittlement observed in accelerated testing per ASTM B117 for 1,000 hours of salt spray exposure. For wind energy projects, grip strut grating is used in nacelle platforms and tower internal ladders, where its lightweight design reduces overall turbine weight while meeting IEC 61400-1 structural requirements. The self-draining open area prevents ice formation in cold climate turbines operating at -30°C, a critical factor for projects in Scandinavia and Canada.

Petrochemical and Chemical Processing Durability

Petrochemical refineries and chemical processing plants specify this grating for pipe rack access, valve platforms, and distillation column walkways where exposure to corrosive chemicals and high temperatures is routine. In a typical refinery, grating panels must resist sulfuric acid concentrations up to 30% and caustic soda solutions at 50% concentration, conditions where hot-dip galvanizing provides superior performance compared to painted carbon steel. The coating meets ASTM A123 requirements for thickness uniformity, with no bare spots or drips that could create corrosion initiation points. For applications requiring spark resistance in explosive atmospheres, Leading Top Union offers grating with stainless steel inserts or aluminum alloy options, though the standard galvanized product is suitable for Zone 2 hazardous areas per IEC 60079-10-1 when properly bonded. The grating's load capacity of up to 500 kg concentrated load supports heavy maintenance equipment and piping supports without deflection exceeding 2mm at mid-span.

Why Choose Leading Top Union for Hot-Dip Galvanized Grip Strut Grating

Leading Top Union (领拓互联) holds ISO 3834-2 certification for welding quality in steel structures, EN 1090-2 EXC3 execution class for load-bearing components, and AWS D1.1 for structural welding, ensuring every grating panel meets international fabrication standards. The production facility in Suzhou operates with automated punching presses capable of processing 2.0mm to 5.0mm steel sheets at rates exceeding 200 panels per shift, with dimensional tolerances held to ±1.0mm for custom orders. Each batch undergoes third-party inspection for coating thickness using magnetic induction gauges per ASTM E376, with minimum coating weights verified at 610 g/m² for 3.0mm material. Full traceability documentation is provided including mill test certificates for base steel, galvanizing certificates per ASTM A123, and load test reports for critical applications, supporting quality assurance requirements for EPC contractors like Bechtel, Fluor, and Technip Energies.

Engineering Collaboration and Customization Capabilities

The engineering team collaborates with clients to optimize panel layouts for specific load requirements, span configurations, and attachment methods, reducing material waste by up to 15% compared to standard catalog products. Custom hole patterns are offered, including 30x100mm and 56x20mm diamond sizes, to accommodate specific drainage or light transmission needs, with tooling changeovers completed within 4 hours. For projects requiring compliance with European standards, grating certified to EN 1993-1-1 (Eurocode 3) for structural steel design is supplied, with design calculations provided for span-to-deflection ratios as specified. The quality management system is audited annually by TÜV Rheinland, and stock levels of 500+ tons of Q235B and A36 steel in various thicknesses are maintained, ensuring lead times of 3-5 weeks for standard orders and 6-8 weeks for custom configurations.

Traceability, Quality Assurance, and Global Logistics

Consistent quality across multiple project phases is achieved through batch-to-batch traceability with unique serial numbers for each panel. The hot-dip galvanizing process is performed in partnership with ISO 9001-certified galvanizers using zinc with purity exceeding 98.5% per ASTM B6, ensuring coating adhesion that withstands bending tests per ASTM A123 without cracking or flaking. For offshore and marine applications, grating with additional cathodic protection compatibility can be supplied, including pre-drilled holes for anode attachment and coating systems that meet NACE SP0178 for immersion service. The export logistics team handles FOB Shanghai or CIF delivery to ports worldwide, with wooden crating per ISPM-15 standards for moisture protection during ocean transit. With over 15 years of experience supplying to EPC firms in 40+ countries, Leading Top Union delivers hot-dip galvanized grip strut grating that meets the technical and commercial demands of global infrastructure projects.
