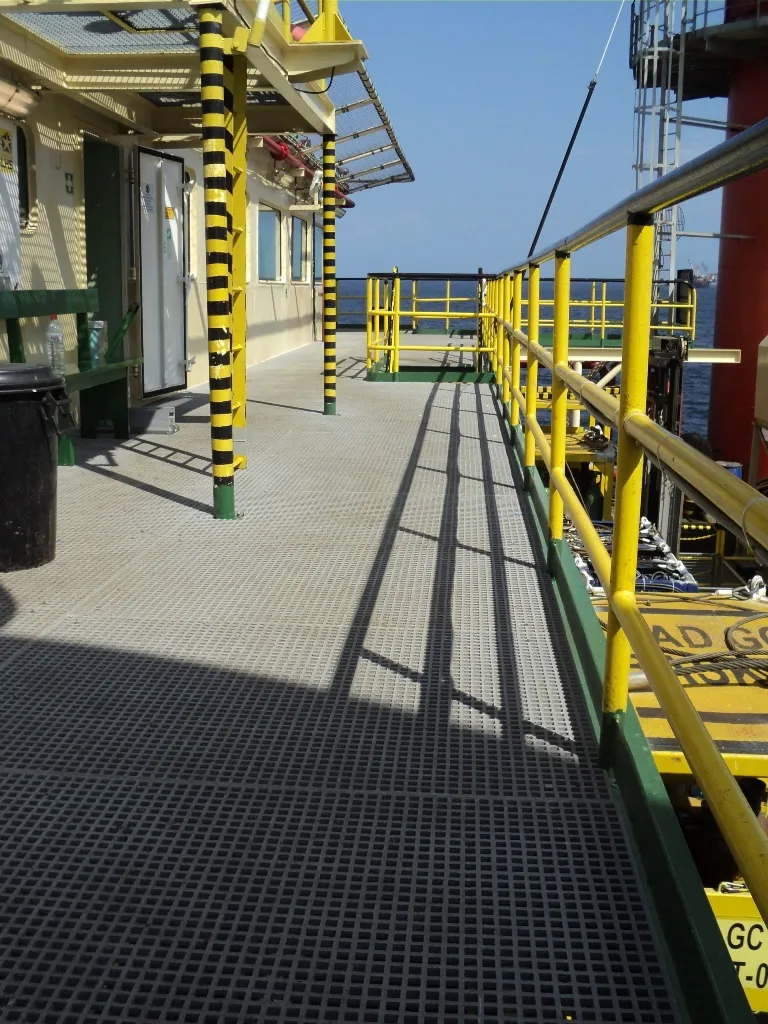

Grip Strut Grating for Offshore Platforms

Product Overview

Grip Strut Grating for offshore platforms is engineered to meet the rigorous demands of marine environments where structural integrity and personnel safety are non-negotiable. Manufactured from 316L stainless steel as a standard option, this grating delivers exceptional resistance to pitting and crevice corrosion in chloride-rich atmospheres, with a PREN (Pitting Resistance Equivalent Number) exceeding 24. The diamond-shaped punched openings, measuring 46x16mm, provide a self-cleaning surface that prevents debris accumulation while maintaining a minimum 65% open area for efficient drainage. Each panel is fabricated to tolerances of ±1.5mm in length and ±0.8mm in width, ensuring precise fitment on platform decks, walkways, and mezzanine levels.

Structural Performance Validation

Structural performance is validated through finite element analysis (FEA) and physical load testing per ASTM E3400 and EN 1993-1-1. A 3.0mm thick panel spanning 600mm supports a concentrated load of 500 kg with a deflection under L/200, while 4.0mm and 5.0mm options handle dynamic loads up to 750 kg and 1000 kg respectively. The grating is designed to withstand wave slam forces up to 25 kPa and platform accelerations of 0.5g, common in harsh offshore conditions. For carbon steel variants, hot-dip galvanizing per ASTM A123 achieves a minimum coating thickness of 85 microns, extending service life to 20+ years in C5-M corrosion zones as defined by ISO 9223.

High-Traction Surface Geometry

The high-traction surface geometry, with serrated edges on each bearing bar, achieves a coefficient of friction of 0.8 dry and 0.6 wet, exceeding OSHA 1910.22 and NORSOK S-002 requirements for slip resistance. This is critical for helicopter landing decks, pipe rack walkways, and turbine platform access routes where oil, hydraulic fluid, or ice may be present. The self-draining design eliminates standing water, reducing corrosion risk and weight accumulation from trapped moisture. Temperature ratings span -40°C to 400°C for stainless steel, making it suitable for cryogenic applications near LNG processing and high-heat zones adjacent to exhaust stacks.

Applications & Industries

Offshore Oil and Gas Production

In offshore oil and gas production, Grip Strut Grating is deployed on topside modules, flare booms, and subsea equipment laydown areas. For a typical 20,000-ton topside platform, 1,200 to 1,800 square meters of grating are required for walkways, stair treads, and mezzanine flooring. The grating supports static loads from personnel (250 kg/m² per ISO 14122-2) and dynamic loads from crane lifts and vibrating equipment. In the UK North Sea, platforms operating at water depths of 150-300 meters use 316L stainless steel grating to withstand 35-year design life requirements under DNV-OS-C101 fatigue criteria.

Offshore Wind Energy Installations

Offshore wind energy installations, including fixed-bottom monopiles and floating turbines, utilize Grip Strut Grating for transition piece platforms, nacelle access decks, and service vessel gangways. A 15 MW offshore wind turbine typically requires 80-120 m² of grating rated for 5 kN/m² live loads and 3 kN point loads per IEC 61400-3-1. The grating must endure 10⁷ load cycles from wave-induced vibrations at frequencies of 0.1-1.0 Hz. Aluminum alloy 5083-H116 variants, weighing 40% less than steel, are specified for floating wind platforms to reduce topside mass while maintaining corrosion resistance in splash zones.

Petrochemical Refineries and LNG Terminals

Petrochemical refineries and LNG terminals install Grip Strut Grating on pipe racks, compressor stations, and loading jetties. In a 200,000 bpd refinery, grating covers 3,000-5,000 m² of elevated walkways, with 4.0mm thickness specified for heavy-traffic areas near fractionation columns. The grating resists chemical spills including sulfuric acid (pH 1-2) and caustic soda (pH 12-14) when fabricated from 904L stainless steel or duplex grades like S31803. For cryogenic LNG applications at -162°C, 304L stainless steel retains impact toughness above 27 J at -196°C per ASTM A240, ensuring safe access around storage tanks and vaporizers.

Shipbuilding and Marine Construction

Shipbuilding and marine construction sectors specify Grip Strut Grating for vessel decks, engine room platforms, and offshore accommodation modules. A 300-meter FPSO (Floating Production Storage and Offloading) vessel requires 2,500-4,000 m² of grating for process areas, helidecks, and lifeboat stations. The grating meets Lloyd's Register and ABS classification requirements for fire resistance (A-60 rating when combined with intumescent coatings) and structural integrity under 100-year storm wave heights of 15-20 meters. Custom sizes up to 600x2440mm reduce weld joints and installation time by 30% compared to standard panels.

Why Choose Leading Top Union for Grip Strut Grating for Offshore Platforms

Manufacturing Capabilities and Certifications

Leading Top Union operates a 15,000 m² manufacturing facility in Suzhou with ISO 3834-2 certification for welding quality, EN 1090-2 EXC3 for structural steel execution, and AWS D1.1 for welding procedure specifications. Grip Strut Grating is produced on automated press lines with CNC punching accuracy of ±0.5mm, ensuring consistent hole patterns and bearing bar alignment. Each batch undergoes third-party inspection per ASTM A380 for surface finish and EN 10204 Type 3.1 certification for material traceability. A 98% on-time delivery rate is maintained for offshore projects, with lead times of 4-6 weeks for standard stainless steel orders.

Quality Assurance and Testing Protocols

The quality management system includes salt spray testing per ASTM B117 for 1,000 hours on stainless steel samples, verifying no red rust formation. Load testing is performed on a 200-ton universal testing machine with deflection measurement using LVDT sensors accurate to ±0.01mm. Certified load tables are provided for each thickness-span combination, calculated per EN 1990 and AISC 360-16. For critical offshore applications, NORSOK M-650 qualification for material suppliers and DNV-GL type approval for grating used in safety-critical areas is offered. Engineers assist with structural calculations and custom fabrication drawings in 2D AutoCAD and 3D SolidWorks formats.

Project Experience and Industry Partnerships

Grip Strut Grating is supplied to EPC contractors including McDermott, Saipem, and TechnipFMC for projects in the Gulf of Mexico, North Sea, and Southeast Asia. Recent deliveries include 1,800 m² of 316L grating for a 60,000-ton FPSO topside module in Brazil, meeting Petrobras N-1338 standards for slip resistance and corrosion protection. For a 1.2 GW offshore wind farm in Taiwan, 2,400 m² of aluminum grating with 5.0mm thickness was provided, certified for 25-year service life in typhoon-prone zones. The technical team supports FAT (Factory Acceptance Testing) and provides installation manuals with weld procedures per AWS D1.6 for stainless steel.

Customization Options and Technical Support

Flexible surface treatments beyond standard hot-dip galvanizing are available, including duplex coatings (zinc-rich primer plus polyurethane topcoat) for C5-M environments, and electropolishing for 316L to achieve Ra < 0.5 µm surface finish for hygienic zones. Custom hole patterns are available with opening sizes from 30x12mm to 60x20mm to meet specific drainage or light transmission requirements. The engineering team provides free load-span calculations and 3D BIM models (Revit and IFC formats) for integration into project digital twins. Contact the technical sales team at sales@leadingtopunion.com for a project-specific quotation and material certification package.

Available Material Options

Request a Factory Quote

Fill in your details and we will send a quote for Grip Strut Grating for Offshore Platforms with shipping cost to your location.
