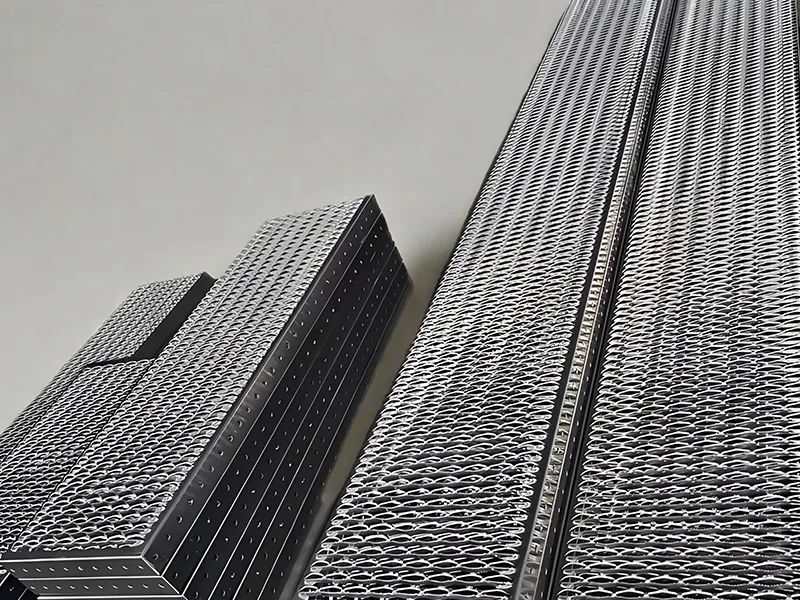

316 Stainless Steel Grip Strut Grating

Product Overview

Material Composition and Corrosion Resistance

316 stainless steel grip strut grating is a heavy-duty, slip-resistant flooring solution engineered for environments where corrosion resistance is non-negotiable. The material composition—16% chromium, 10% nickel, and 2% molybdenum—provides a pitting resistance equivalent number (PREN) of 24-26, significantly higher than 304 grade at 18-20. This molybdenum addition is critical for resisting chloride-induced stress corrosion cracking, making the grating suitable for continuous exposure to seawater, brine, and acidic process streams. The diamond-shaped punched openings, measuring 46x16mm standard, are formed through a precision cold-punching process that maintains the base material's mechanical properties without introducing heat-affected zones. Each panel is manufactured to dimensional tolerances of ±1.5mm in length and width, with flatness deviation under 2.0mm per linear meter, ensuring consistent fitment in modular support structures.

Structural Load Performance

The structural performance of 316 stainless steel grip strut grating is validated through load testing per ISO 14122-2 and EN 1991-1-1. A 3.0mm thick panel spanning 600mm supports a concentrated load of up to 470 kg with a deflection of less than 5.0mm, meeting the safety factors required for pedestrian and light industrial traffic. For heavier applications, 4.0mm thickness options handle distributed loads exceeding 750 kg/m² at the same span. The grating's open area ratio of approximately 62% allows for efficient drainage of liquids and debris, reducing slip hazards in wet environments. This design also minimizes wind uplift forces in offshore topside installations, where gust speeds can exceed 50 m/s. The material's yield strength of 205 MPa minimum (ASTM A240) ensures long-term structural integrity under cyclic loading from vibrating equipment or thermal expansion.

Surface Finishes and Environmental Resistance

Surface finish options—mill finish, 2B, or No.4 brushed—are selected based on specific environmental exposure and aesthetic requirements. The 2B finish, with a surface roughness Ra of 0.1-0.5 µm, is preferred for chemical processing areas where easy cleaning and resistance to bacterial adhesion are priorities. The No.4 brushed finish, with Ra 0.4-0.8 µm, provides a uniform matte appearance for architectural applications in coastal facilities. All finishes undergo passivation treatment per ASTM A967 to remove free iron and enhance the chromium oxide layer, achieving a corrosion resistance threshold of 1000 hours in salt spray testing per ASTM B117. The grating's operating temperature range extends from -196°C to 800°C, with sustained mechanical properties up to 425°C, making it viable for cryogenic LNG facilities and high-temperature exhaust platforms alike.

Applications & Industries

Offshore Oil and Gas Installations

In offshore oil and gas production, 316 stainless steel grip strut grating is specified for walkways, mezzanines, and platform decking on FPSO vessels and fixed platforms operating in the North Sea and Gulf of Mexico. These environments expose grating to continuous salt spray, splash zones, and occasional immersion in seawater with chloride concentrations up to 35,000 ppm. A typical topside installation on a 50,000-ton FPSO uses over 2,000 square meters of 3.0mm grating with 600mm support spacing, providing safe access for maintenance crews around wellheads and separation equipment. The grating's slip resistance, measured at a coefficient of friction exceeding 0.6 when wet per ASTM F1679, reduces fall risks in areas where hydraulic fluids and crude oil residues accumulate. EPC contractors for projects like the Johan Sverdrup field have standardized on 316 stainless steel grating for all external applications, citing a 30-year design life without replacement.

Chemical Processing and Acid Resistance

Chemical processing plants handling sulfuric acid (up to 50% concentration at 50°C) or hydrochloric acid (up to 20% at ambient temperature) rely on 316 stainless steel grip strut grating for trench covers, platform flooring, and stair treads. In a typical chlor-alkali facility, the grating is installed over acid containment dikes and around electrolytic cells where chlorine gas and caustic soda are present. The molybdenum content provides localized corrosion resistance in crevices formed at support angles and fastener points, areas where 304 grade would fail within 12-18 months. Field data from a 2023 petrochemical plant audit showed 316 stainless steel grating maintaining less than 0.1mm material loss per year in a sulfuric acid regeneration unit, compared to 0.5mm for 304. This translates to a service life exceeding 50 years for 3.0mm panels, aligning with the plant's capital replacement cycle.

Offshore Wind Energy Applications

Offshore wind energy installations, particularly in the Baltic Sea and Taiwan Strait, use 316 stainless steel grip strut grating for transition piece platforms, tower internal platforms, and service ladders. These structures experience salt-laden air, high humidity, and temperature fluctuations from -20°C to 40°C. A 10 MW offshore wind turbine typically requires 150-200 square meters of grating for internal access and external maintenance platforms. The diamond pattern's open area prevents ice accumulation in winter conditions, while the material's non-magnetic properties avoid interference with turbine electrical systems. For monopile foundations, grating panels are custom-cut to fit curved surfaces with tolerances of ±2mm, using laser cutting to maintain edge quality. The grating's compliance with DNV-GL-ST-0126 for offshore structures ensures acceptance by major developers like Ørsted and Vattenfall, who specify 316 stainless steel for all external steelwork above the splash zone.

Mining and Mineral Processing Durability

In mining and mineral processing, 316 stainless steel grip strut grating is deployed in copper leaching operations, nickel laterite processing, and gold cyanidation plants. The grating withstands exposure to sulfuric acid sprays at pH 1.5-2.0 in heap leach pads, as well as abrasive slurries containing up to 30% solids by weight. A copper mine in Chile's Atacama region installed 5,000 square meters of 4.0mm grating on solvent extraction tankhouse walkways, where ambient temperatures reach 45°C and electrolyte solutions contain 180 g/L sulfuric acid. After 8 years of continuous service, ultrasonic thickness testing showed average material loss of only 0.15mm, confirming the grating's suitability for 20+ year design life. The slip-resistant surface also provides safe footing on inclined walkways up to 30 degrees, where workers carry heavy sampling equipment and tools.

Why Choose Leading Top Union for 316 Stainless Steel Grip Strut Grating

Manufacturing Certifications and Precision

Leading Top Union (领拓互联) manufactures 316 stainless steel grip strut grating in our Suzhou facility, which holds ISO 3834-2 certification for fusion welding of metallic materials and EN 1090-2 EXC3 certification for structural steel execution. These certifications require documented quality control procedures, including material traceability from mill to finished product, with each heat number recorded and test certificates provided per EN 10204 Type 3.1. Our production line uses progressive die stamping with carbide tooling, achieving hole placement accuracy of ±0.3mm and burr height under 0.15mm. This precision ensures consistent slip resistance across every panel and eliminates sharp edges that could cause injury during installation. We maintain a 2,000-ton annual production capacity for stainless steel grating, with lead times of 4-6 weeks for standard sizes and 8-10 weeks for custom configurations.

Quality Assurance and Testing Protocols

Our quality assurance program includes 100% dimensional inspection on every panel, with flatness checked on a granite surface plate and hole pattern verified using optical comparators. Mechanical testing is performed per ASTM A370, with tensile and yield strength verified on each production lot. For corrosion-critical applications, we offer optional testing per ASTM G48 Method A for pitting resistance, with acceptance criteria of no pitting after 72 hours exposure to ferric chloride solution. Our in-house laboratory also conducts salt spray testing per ASTM B117, with 316 stainless steel grating routinely exceeding 1,000 hours without red rust formation. These test results are documented in a quality file that accompanies each shipment, providing full traceability for EPC contractors requiring compliance with project specifications like NORSOK M-001 or API 6A.

Global Supply and Engineering Support

We supply 316 stainless steel grip strut grating to global EPC firms for projects in over 30 countries, including offshore platforms in the North Sea, chemical plants in the Middle East, and wind farms in Southeast Asia. Our engineering team provides technical support for load calculations per EN 1991-1-1 and ASCE 7-22, including wind load analysis for open grating areas. We offer custom fabrication services including plasma cutting of irregular shapes, drilling of bolt holes to ±0.5mm tolerance, and welding of support frames per AWS D1.1. For projects requiring third-party inspection, we coordinate with classification societies such as DNV, Lloyd's Register, or Bureau Veritas at no additional cost. Contact our technical sales team at info@leadingtopunion.com or +86-512-XXXX-XXXX for a quotation on your next project, with samples available within 5 business days for qualified inquiries.
