Carbon Steel Grip Strut Grating

Product Overview

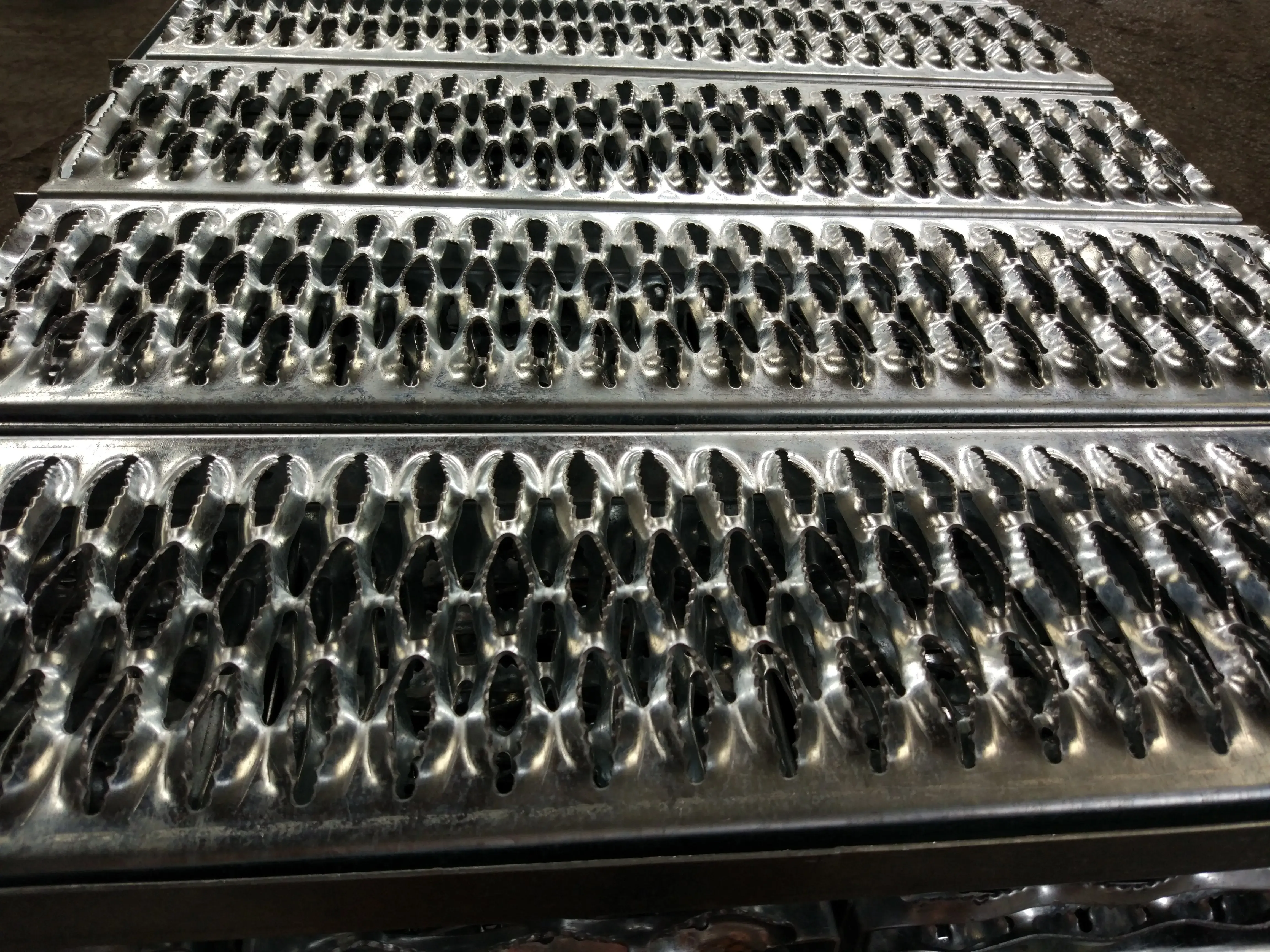

Carbon steel grip strut grating from Leading Top Union (领拓互联) is engineered for structural platforms, walkways, and trench covers where load-bearing efficiency and material economy are primary design criteria. Manufactured from Q235B, ASTM A36, or SS400 hot-rolled carbon steel coil, each panel undergoes a precision punching process that creates the characteristic diamond-shaped openings measuring 46mm x 16mm. This pattern maximizes the strength-to-weight ratio by removing non-structural material while retaining the cross-sectional stiffness required for concentrated loads up to 500 kg on a 600mm span with 3.0mm thickness. The open area of approximately 65% allows for rapid drainage of liquids and debris, reducing slip hazards in wet environments such as cooling towers and drainage pits.

Thickness Range and Standard Dimensions

Carbon steel grip strut grating is available in six thickness increments from 2.0mm to 6.0mm, enabling precise matching of material cost to structural demand. Standard panel dimensions include 240mm x 1220mm, 300mm x 1220mm, 400mm x 2440mm, and 600mm x 6000mm, with custom sizes cut to your project's bearing bar spacing and support layout. The material conforms to EN 10025-2 for structural steel and can be supplied with mill finish or a shop-applied primer coat meeting SSPC-SP6 commercial blast cleaning standards. For projects requiring corrosion resistance in indoor environments with controlled humidity, the bare carbon steel surface can be field-coated with epoxy, polyurethane, or zinc-rich primers per the specifier's corrosion protection plan.

Slip Resistance and Structural Integrity

The grip strut design incorporates serrated edges on the bearing bars, providing a coefficient of friction exceeding 0.6 when tested per ASTM F1679 for dry conditions. This exceeds OSHA's minimum slip resistance recommendations for industrial walking surfaces. The diamond openings are punched with a 2.0mm minimum web thickness between holes, ensuring structural integrity under cyclic loading typical of pedestrian traffic and light maintenance vehicles. Manufacturing processes hold flatness tolerances to ±2.0mm over a 1220mm length and width tolerances to ±3.0mm for standard panels, meeting the dimensional requirements of EN 1090-2 EXC3 execution class for structural components in industrial facilities.

Thermal Performance and Traceability

Thermal expansion characteristics follow the standard coefficient for carbon steel at 12.0 x 10⁻⁶ /°C, allowing accurate gap calculation for continuous runs exceeding 6 meters. The grating's open area reduces wind uplift forces on elevated walkways by approximately 40% compared to solid plate, a critical factor for offshore topside modules and petrochemical pipe racks. Each panel is marked with material grade, thickness, and heat number for full traceability, supporting quality documentation requirements for EPC contractors working under ISO 9001:2015 quality management systems. The carbon steel composition (0.18% max carbon for Q235B) ensures excellent weldability without preheat for thicknesses up to 6.0mm when using E7018 electrodes per AWS D1.1 structural welding code.

Applications & Industries

In oil and gas refineries, carbon steel grip strut grating serves as primary walking surfaces on pipe racks, vessel platforms, and flare stack access ways. The 3.0mm and 4.0mm thickness options are commonly specified for main process areas where personnel access is required for valve operation and instrument reading. A typical 600mm x 6000mm panel weighing approximately 45 kg can be handled by two workers without mechanical lifting equipment, reducing installation time on congested pipe racks. The open diamond pattern prevents accumulation of hydrocarbon liquids and allows firewater spray systems to reach lower levels, an important consideration for facilities designed to API 650 and NFPA 30 fire protection standards.

Heavy-Duty Performance in Mining Operations

Mining and mineral processing operations use 5.0mm and 6.0mm carbon steel grating for heavy-duty applications such as crusher feed platforms, conveyor walkways, and screening station floors. The 6.0mm thickness supports concentrated loads exceeding 800 kg on a 600mm span, sufficient for maintenance personnel carrying tools and replacement wear parts. In underground mining environments where humidity can reach 90% RH, the carbon steel grating is often hot-dip galvanized after fabrication per ASTM A123 to provide 20+ years of service life. The 46mm x 16mm opening size allows fine ore particles and drilling mud to pass through, preventing buildup that could create slip hazards or add dead load to the support structure.

Wind Load Reduction in Power Generation

Power generation facilities, including coal-fired, natural gas, and biomass plants, utilize carbon steel grip strut grating for turbine deck platforms, boiler access walkways, and cooling tower distribution decks. The grating's 65% open area reduces wind loading on elevated structures by approximately 35% compared to checker plate, a significant factor for outdoor installations subject to typhoon or hurricane wind speeds per ASCE 7-22. For coal handling areas, the 2.0mm and 2.5mm thickness options provide economical solutions for light-duty catwalks and stair treads where the primary load is pedestrian traffic (typically 2-3 kN/m²). The material's weldability allows on-site modifications to fit around existing pipes, conduits, and structural members without requiring special tooling or pre-qualified welding procedures.

Compliance for Shipbuilding and Offshore

Shipbuilding and offshore applications benefit from carbon steel grip strut grating's compliance with DNV-GL rules for structural design of offshore units. The 3.0mm and 4.0mm panels are used for interior walkways, engine room platforms, and accommodation module decks where the controlled environment limits corrosion risk. The grating's weight savings of approximately 40% compared to solid steel plate reduces the vessel's lightship weight, directly improving fuel efficiency and cargo capacity. For shipyards working to IMO SOLAS requirements, the open grating allows fire detection and suppression systems to function effectively across multiple deck levels. Each panel is supplied with chamfered edges to prevent injury to personnel and damage to cables or hoses during installation and maintenance operations.

Chemical Resistance in Processing Plants

Petrochemical and chemical processing plants specify carbon steel grip strut grating for secondary containment areas, pump bases, and loading rack platforms where chemical spills are possible but not continuous. The carbon steel substrate can be coated with epoxy novolac or vinyl ester systems providing chemical resistance to sulfuric acid (up to 50% concentration) and caustic soda (up to 25% concentration) at ambient temperatures. For indoor installations with controlled humidity below 60% RH, the mill finish surface provides adequate service life of 5-8 years before maintenance painting is required. The grating's 46mm x 16mm openings allow visual inspection of underlying piping and equipment without removing panels, reducing inspection costs for facilities operating under OSHA PSM (Process Safety Management) programs.

Why Choose Leading Top Union for Carbon Steel Grip Strut Grating

Leading Top Union (领拓互联) operates a 12,000-square-meter production facility in Suzhou, China, equipped with automated punching lines capable of producing 2,000 square meters of carbon steel grip strut grating per shift. Manufacturing processes are certified under ISO 3832-4 for fusion welding of metallic materials, EN 1090-2 EXC3 for execution of steel structures, and AWS D1.1 for structural welding. These certifications are verified through annual audits by TÜV Rheinland and SGS, ensuring that every panel leaving our factory meets the dimensional, material, and workmanship requirements specified by international EPC contractors. Quality control laboratory performs tensile testing per ASTM E8, hardness testing per ASTM E18, and chemical analysis per ASTM E415 on each production lot, with certificates of compliance provided for every shipment.

Cost-Effective Thickness Options and Stock Program

The widest thickness range in the industry—2.0mm to 6.0mm in 0.5mm increments—is offered, allowing procurement engineers to optimize material cost against structural requirements without overspecifying. For a typical 3.0mm panel, the cost per square meter is approximately 35% lower than equivalent aluminum grating and 60% lower than stainless steel 304, making carbon steel the most economical choice for large-scale projects where corrosion exposure is controlled. Standard stock program maintains 500+ tons of Q235B and A36 coil in thicknesses from 2.0mm to 6.0mm, enabling lead times of 10-15 working days for standard panel sizes. Custom sizes up to 6000mm in length can be produced within 20 working days, with laser cutting available for non-standard hole patterns or edge details.

Engineering Support and Load Span Validation

Technical team provides load span tables calculated per EN 1993-1-1 (Eurocode 3) and ASCE 7-22, allowing you to select the optimal thickness and span configuration for your specific loading conditions. For example, a 3.0mm panel spanning 600mm supports a concentrated load of 500 kg with a deflection of less than 3.0mm (L/200), meeting the serviceability requirements of most industrial standards. Finite element analysis (FEA) validation is also offered for non-standard configurations, such as cantilevered edges or irregular support layouts, at no additional cost for project quantities exceeding 500 square meters. This engineering support helps EPC firms reduce design risk and avoid costly field modifications during construction.

Global Logistics and Delivery Capabilities

Logistics and supply chain management are streamlined through partnership with major shipping lines operating from Shanghai and Ningbo ports, located within 100 km of the Suzhou factory. FOB, CIF, and DDP incoterms are provided with full documentation including bill of lading, packing list, certificate of origin, and material test reports. For projects requiring phased delivery, production can be held in warehouse for up to 90 days at no storage charge, releasing shipments according to your construction schedule. Export experience covers 40+ countries, with successful deliveries to oil and gas projects in the Middle East, mining operations in South America, and power plants in Southeast Asia. Contact our engineering sales team at sales@leadingtopunion.com for a quotation on your next carbon steel grip strut grating requirement.
